- YUEQING YISEN ELECTRONIC TECHNOLOGY CO.,LTD.

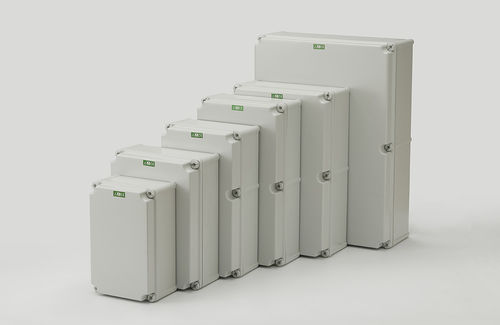

Wall-mount enclosure U seriesrectangularplasticABS
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- plastic, ABS, abaca fiber
- Application
- industrial, for controllers, for telecom applications
- Protection level
- IK 08, halogen-free, NEMA 4, chemical-resistant, flame-retardant, heat-resistant, IP65
- Other characteristics
- miniature, lightweight, with lid
- Width
Min.: 220 mm
(8.7 in)Max.: 600 mm
(23.6 in)- Height
Min.: 340 mm
(13.4 in)Max.: 800 mm
(31.5 in)- Depth
Min.: 150 mm
(5.91 in)Max.: 220 mm
(8.66 in)
Description
MAIN TECHNICAL FEATURES
- Resistance: chemical agents, alkali, oils, salts, etc.
- Rated voltage: up to 690V
- Maximum current: up to 800A
- Operating temperature: -40℃ to + 120℃
- Material: HB ABS halogen free (Polycarbonate PC on request)
- IP degree: IP 66
- IK degree: IK 08
- Color: RAL7035 grey (other colours on request)
- CE, ROHS
Mounting plate: galvanised steel plate or plastic plate (separate supply) wall mount brackets: stainless steel AISI 304 (separate supply) flame retardant UL94V-0 high heat resistant ABS or PC material (on request)
dimensions(mm) product code(grey cover) Steel mounting plate
220*340*150 U-2234 GP-2234
270*460*160 U-2746 GP-2746
300*400*160 U-3040 GP-3040
300*520*160 U-3052 GP-3052
360*540*180 U-3654 GP-3654
500*600*200 U-5060 GP-5060
600*800*220 U-6080 GP-6080
