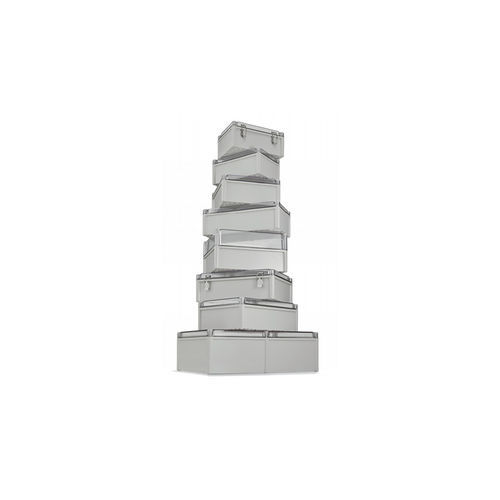

Distribution electrical enclosure P series

controlswitchingwall-mounted

P series - large size MAIN TECHNICAL FEATURES Resistance:chemical agents,alkali,olis,salts,etc. HALOGEN FREE Rated voltage: up to 690V Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) IP degree: IP 66 IK degree: IK 08 Color: RAL7035 grey(other colours on request) CE, ROHS Mounting plate: galvanised steel plate or plastic plate(separate supply) wall mount brackets: stainless steel AISI 304(separate supply) flame retardant UL94V-0 high heat resistant ABS or PC material(on request) W H D(mm) product code(grey cover) product code(transparent cover) plastic mounting plate galvanised mounting plate 1 280*190*130 P-281913 P-281913W PP-2819P GP-2819 2 280*190*180 P-281918 P-281918W PP-2819P GP-2819 3 380*190*130 P-381913 P-381913W PP-3819P GP-3819 4 380*190*180 P-381918 P-381918W PP-3819P GP-3819 5 280*280*130 P-281913 P-281913W PP-2828P GP-2828 6 280*280*180 P-281918 P-281918W PP-2828P GP-2828 7 280*340*130 P-281913 P-281913W PP-2834P GP-2834 8 280*340*180 P-281918 P-281918W PP-2834P GP-2834 9 280*380*130 P-281913 P-281913W PP-2838P GP-2838 10 280*380*180 P-281918 P-281918W PP-2838P GP-2838 11 380*560*180 P-381918 P-381918W PP-3828P 2pcs GP-3856
