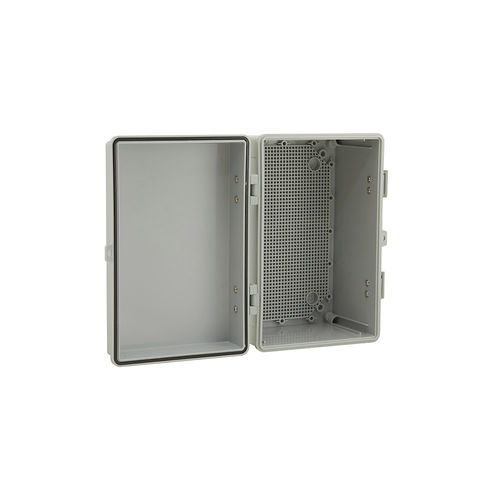

Wall-mount enclosure L series

rectangularABSpolycarbonate

Plastic enclosure L series Resistance:chemical agents,alkali,olis,salts,etc. Rated voltage: up to 690V MAIN TECHNICAL FEATURES Maximum current: up to 800A Operating temperature: -40℃ to + 120℃ Material:HB ABS halogen free(Polycarbonate PC on request) wall mount brackets: plastic wall hoops 4pcs/set IP degree: IP 66 IK degree: IK 08 Color: RAL7035 grey(other colours on request) CE, ROHS Mounting plate: galvanised steel plate 1.5mm(separate supply) flame retardant UL94V-0 high heat resistant ABS or PC material(on request) Electrical plastic switch box with plastic hinges and clips dimensions product code(grey cover) Product codeTransparent cover internal door Plastic mounting plate steel plate 300*200*160 L-3020 L-3020W LID-3020 PP-3020 GP-3020 300*200*170 L-3020-1 L-3020-1W 300*300*170 L-3030 L-3030W LID-3020 PP-3030 GP-3030 300*300*180 L-3030-1 L-3030-1W 400*300*170 L-4030 L-4030W LID-4030 PP-4030 GP-4030 400*300*180 L-4030-1 L-4030-1W 500*400*200 L-5040 L-5040W LID-5040 PP-5040 GP-5040 600*400*220 L-6040 L-6040W LID-6040 PP-6040 GP-6040 600*500*220 L-6050 L-6050W LID-56050 PP-6060 GP-6050
