Wire+Cable for the railway industry
|
|
|
|
|
|

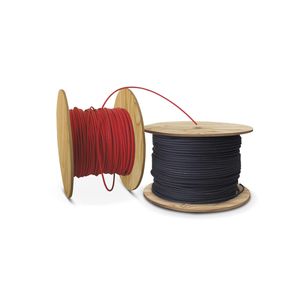

The electron-beam cross-linked and non-polluting RADOX® solar cables are extremely robust, highly resistant against heat, cold and weather influ-ences like UV-radiation or ozone and hydrolysis. Additionally, these cables are halogen free, flame retardant, and do not generate corrosive gases or low smoke in case of fire.
RADOX® solar connectors are also equipped with outstanding mechanical properties with high weather resistance and are also halogen free. They are especially characterized by a narrow design and a high current carrying capacity due to a low electrical resistance.
HUBER+SUHNER develop and produce high-grade receptacle systems that are optimally matched to your volume production processes.HUBER+SUHNER supplies completely assembled wiring systems in required lengths or raw cable and connectors with an outdoor assembly kit. Once out of service, RADOX® solar cables can be disposed of according to EU Code EAK 170411 (2001/118/EG), allowing them to be recycled into new raw materials for reuse.
|
|
|
The Power Cables division covers all commonly used low- and medium voltage cables and the relevant accessories for energy supply networks, up to and including easy-to-install, environment-friendly cabling for cutting systems.
|
|
Characteristics: insulated cables in silicon, Teflon, FEP, MFA, PFA, PTFE, Tefzel, ETFE, XLPE, XLPO, glass fibre, mineral fibre, Kapton.
Applications : Electromechanical construction (cables and braided sleevings – classes B, F and H), wind power (Profilwind range), electrotechnical applications (zero-halogen cables), rail construction (Y 3000 S, Z 3000 SS, NY 500 SO), heavy industry, lighting. Reference standards: IEC 60332-1, IEC 60332-2, IEC 60332-3, IEC 60331, IEC 60754-1, IEC 60754-2, IEC 61034-1, IEC 61034-2, EN 50200, EN 50264, EN 50265, EN 50266, EN 50267, EN 50268, EN 50382, NFF 63827, NFC 32070
Brands: SILICABLE, SILIFLON, SILICOUL, SILIFLAM, PYRISOL, COUPLIX, SILIGAINE, SILITUBE, VARPREN, SILISOL, VEROX
|
|
The conductors in Ceander cable are made of copper or aluminium. Round conductors are normally used: single-wire up to 10 mm2 and multi-wire from 16 mm2 upwards. For larger cross-sections (150 + 240 mm2), single-wire sector-form aluminium conductors are also used. The conductor insulation is mainly made of cross-linked EPR.
Protection for people is provided by the concentric outer conductor (PEN conductor), applied in the form of a sinusoidal line. The electrical cross-connection is ensured by a copper band. Protection against corrosion is provided by a halogen-free black outer casing with two lengthwise yellow strips.
|
|
Reinforced cables with wires for low voltage power distribution.
Recommended for use in rooms with the risk of fire or explosion thanks to its explosionproof characteristics (ITC-BT-29) and in all places requiring mechanical cable protection or special tensile strength during laying.

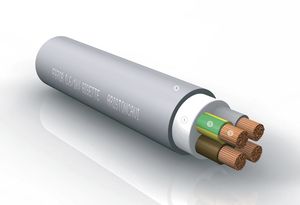

The entire range of ARMIGRON-M UNFIRE cables are Non Flame-Propagating as per EN 50266 (corresponding to the international IEC60332-3). Their hydrocarbon resistance property makes them essential in environments in which the cable may undergo chemical attack from this type of compound.
As the 70 mm2 section inclusive, the SECTORFLEX configuration is offered with a flexible sectorial conductor that, with the same electrical properties and the same conventional terminals and accessories as circular cable, provides a lower cable diameter and weight that significantly increases its ease of handling and installation.
Maximum permanently-operating conductor temperature 90 ºC
|
|
We offer you an extensive range of flexible power transmission components. Our diverse manufacturing processes facilitate the production of highly flexible braided cables matched to suit your specific application, ready-assembled connecting components or welded high-current connectors. From the smallest ground or earthing tapes up to high-current cables with 6000 mm² conductor cross-section – almost all conceivable applications are covered. Whether in air-cooled or water-cooled designs, we can offer you the right components and solutions.
Please contact us directly for technical support.
|
|
The SEGURFOC-331 (HS+) cable series is made up of flexible single and multi-pole 600/1000 V cables.
The design, construction and testing are compliant with the international standard IEC 60502 and the testing standard EN 50200 (PH-90), withstanding temperatures of 840 ºC for 90 minutes that means they are capable of maintaining the service despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.
These cables must be installed in safety circuits in public places, as per ITC-BT-28. They are essential in detection and alarm circuits, evacuation systems and fire-fighting systems.
|
|
Cables for power distribution for medium voltage outdoor, cased or underground installations.
Abrasion and tear-resistant jacket. Easier slide
Cable with lengthways shutter against water penetrating the shielding and conductor. Furthermore, radial shutter against accidental breakage of the jacket using aluminium-copolymer tape attached to it
|
|
|
|
|
|
Even nowadays, conductors for MV cables to Swiss standards are made of braided round copper wires. The inner and outer cross-linked semiconductor is welded permanently with the XLPE insulation. For EPR insulation, on the other hand, the outer semiconductor is glued.
The screening is formed by the outer semiconductor layer, together with a layer of round copper wires. A suitable screening cross-section is assigned to each conductor cross-section. The copper wire screening is held together by a copper band, also ensuring the electrical cross-connection between the copper wires. Lengthwise water-tightness is guaranteed by embedding the copper sheath in expansion strips.
Protection against corrosion is provided by a halogen-free black outer casing with two lengthwise red stripes.
Three single conductor cables can be braided together to make a triple-conductor or triple-casing cable. If cable laying conditions are difficult, it is also possible to lap the cables with tensile and protective armouring which consists of a layer of galvanised flat steel wires.
|
|
Cables for power distribution for medium voltage outdoor, cased or underground installations.
Abrasion and tear-resistant jacket. Easier slide.
Reticulating process: The three extruded layers (semi-conductors and insulation) are extruded at the same time in a triple head. The tube is kept under controlled inert gas (N2) pressure to prevent the formation of vacuoles. The temperature profile of the tube is carefully controlled to ensure the correct level of reticulation in the cable core.
|
|
Medium Voltage Power Cables up to 30 kV with XLPE-insulation
The XLPE-insulation possesses very good electrical, mechanical and thermal characteristics in medium voltage networks. This type of insulation is excellent chemical resistant and also resistant to cold. Due to various advantages, the XLPEinsulated type has vastly displaced the traditional classical paper insulated types in many sectors.
The XLPE-insulated medium voltage cables are designed with longitudinally water-proof. In comparison to PVC and paper-insulated cables, the advantages of XLPE-insulated medium voltage power cables are possessing a low dielectric factor.
The good properties of XLPE-insulated cables remain constant at a long temperature range. These cables can be laid in earth, in air or in tubes.
|
|
|
|
|
|
More information can be seen by choosing in the menu on the left. If you would like to receive more specific information regarding our products, please contact us. If your company is in need of the highest quality of current conducting cables, Brouwer Metaal will be able to offer you the products you need. We offer many different current conducting cables, all with different qualities and characteristics, to ensure that you can find the righ cable for your purposes at Brouwer Metaal.
Our current conducting cables are extremely flexible, to make sure that you can use them for all the purposes that your business requires. Whether you are looking for cables for smaller electrical appliances or for large industrial machines, Brouwer Metaal will offer a great variety of superior current conducting cables.
As a major supplier of these products, Brouwer Metaal has years of experience in working with products made out of copper alloys and aluminium bronzes. Combining the experience of our employees with the newest technologies results in the production of current conducting cables that lives up to the highest standards necessary. In addition to current conducting cables, Brouwer Metaal makes air and water-cooled cables, welding weels, electrode caps, injection plungers, and much more.
|
|
|
|
|
|
Cabelte has a long and renowned experience on the manufacturing of low voltage power cables. The company history dates back to 1938, at that time under the name of Jomar, latter giving birth to Cabelte.
Throughout the years, the market verifies a significant progression, requiring improved cables for new applications as well as more restricted and demanding standard requirements.
Cabelte has been following this evolution by enriching its technical competences and getting the most suitable equipments for manufacturing and testing the different types of cables. Nowadays, the range of cables comprise thousands of references divided by several families of products, to be used on low voltage power transmission for public networks, industrial and housing applications, railways, airports, etc..
Cables are manufactured according to both national and international (CENELEC, CEI, EN, etc) standards from different countries (Portugal, Spain, France, United Kingdom, Germany, Switzerland, etc) and also particular specifications issued by some customers.
Additional technical requirements may also be considered to comply, for instance, with harsh environment applications and adverse conditions.
|
|

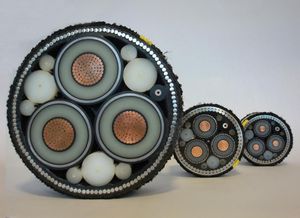

Parker Scanrope is a global supplier of umbilicals, subsea power cables and associated termination equipment to the offshore oil & gas industry, & the offshore wind turbine industry. We offer customized products manufactured to meet your requirements:
* Electro – Hydraulic – Communication Umbilicals, Super Duplex steel tubes – Thermoplastic hoses.
* Medium Voltage – High Voltage power conductors, Low voltage signal cables. * Power Umbilicals - Supply of electric power between platforms or from shore to platform
* Medium Voltage – High Voltage power conductors.
* Fibres in Metallic Tubes (FIMT).
* Multi purpose Subsea Power Cables for
- Offshore Wind Turbine Industry
- Wave power subsea cables
* Terminations - Accessories (Subsea/topside terminations are an integral part of the supply of Umbilicals & Power cables.)
|
|
colored conductors and non-fused earthed conductor:
- high voltage cable with colored conductors and ground wire, 0.75mm², 1.0mm², 1.5mm², jacket gray RAL 7001
colored conductors and non-fused earthed conductor, shielded:
- high voltage cable with colored conductors and ground wire, 0.75mm², 1.0mm², 1.5mm², shielded, jacket gray RAL 7032
numbered conductors and non-fused earthed conductor:
- high voltage cable with black conductors + number print and ground wire, 0.75mm², 1.0mm², 1.5mm², 2.5mm², jacket gray RAL 7001, oil resistant
|
|
Cabelte produces, since 1983, medium voltage cables up to 36 kV. The cables with copper or aluminium conductors can be insulated with cross-linked polyethylene or polyolefin, according to the configurations adequate to the standards requirements and constructive applications demanded for each situation.
Cabelte uses in the insulation production the triple extrusion technique, with inner and outer insulating and semiconducting layers, simultaneously extruded, avoiding this way contamination risks and presence of impurities.
|
|
Cabelte produces, since 1983, medium voltage cables up to 36 kV. The cables with copper or aluminium conductors can be insulated with cross-linked polyethylene or polyolefin, according to the configurations adequate to the standards requirements and constructive applications demanded for each situation.
Cabelte uses in the insulation production the triple extrusion technique, with inner and outer insulating and semiconducting layers, simultaneously extruded, avoiding this way contamination risks and presence of impurities.
|
|
|
|
|
|
Cabelte began the manufacturing of medium voltage power cables in 1983 for a Project which required the strengthening of internal technical staff and a significant investment with new buildings and equipment for production and testing.
By that time, the range of products included, namely, cables to be used on low voltage power transmission public networks and in some industrial networks.
Throughout the years, new types of cables were developed – with more demanding technical requirements, having different design characteristics and cables for different markets. One should remark, those to be applied on airports, underground railways and wind farms.
The company has been following this evolution and, nowadays, it has a wide range of references covering the different rated voltages, several national and the most important international standards and also particular specifications adopted by some customers. Additional technical requirements may also be considered to comply, for instance, with applications in harsh environment.
In 2005 Cabelte invested in new production machinery allowing to double its capacity for supplying medium voltage cables.
|
|
