Application:
- especially designed for shipbuilding and electric systems
- control panels
- signal systems
- sensor leads, solenoid valves, electromagnets
|
|
HUBER+SUHNER offers some standard cable systems which can be specifically modified for industry and installation applications. But mostly, systems are designed and produced according to the customer's specifications.
We offer:
- lighting systems for tunnels
- airfield lighting
- customer specific cable systems for machine building, apparatus engineering, sensor wiring, measurement devices, door systems, robotics, air conditioning
- other special applications
|
|
|
Combined energy and control cables for the machinery and construction industries as well as high-quality polyurethane cables for mining and tunneling applications - these are the key features in the range of products from our Industry division. The range also includes cables for salmon farms.
|
|
Features:
Flexible and tough jacket. Offers -50°C to 105°C temperature extremes. Seoprene offers excellent abrasion, ozone, sunlight, chemical and oil resistance as well as water and mold resistant non-wicking lightweight polypropylene fillers. Water resistant with high dielectric insulation. Lightweight, long lasting, easy to carry and easy to handle. All components are recyclable and non-hazardous for environmental landfill disposal. Color coded conductors for easy identification.
Applications:
Special uses requiring flexibility and mechanical toughness, high environmental resistance and flame retardance. Push button remote controls. Motor control, stage equipment and lighting. Industrial control and robotic systems. Outdoor applications. Suitable and approved for submersion in water.
|
|
|
Specifically designed for use in EMC-protected areas. EMC means Electro-Magnetic Compatibility. The optimal screening effect is achieved when these PURWIL® EMC cables (which include a special sheath) are used together with our EMC screwed joints.
|
|
|
|
|
|
Inter-8® Weave Cable has applications to many interference problems. Current-carrying conductors generating interference fields can be replaced with INTER-8 WEAVE cable to substantially reduce radiation. In low impedance circuits where external interference results in disturbing signals, Inter-8® Weave Cable will reduce the circuit sensitivity to the external fields. Among typical applications are cable connections to strain gages, thermocouples, photoelectric detectors, audio coils and transformers, piezoelectric transducers and preamplifiers.
SPIRA-SHIELD is flexible conduit that provides high permeability magnetic shielding for sensitive cables and conductors. Constructed of .010" thick CO-NETIC AA Alloy, SPIRA-SHIELD provides greater attenuation than braided sleeving and also furnishes physical protection. Among typical applications are ground support and communication equipment, shipboard control systems, audio-level interconnections, sensitive instrumentation and aerospace apparatus.
Co-Netic® Braided Sleeving, constructed of 36 or 34 AWG CO-NETIC AA high permeability wire, provides superior flexibility compared to foil that is spiral or channel wrapped around cable.
CO-NETIC AA wire in .005" diameter is widely used in magnetic shielding braid applied over cables. All gauges have applications where high permeability, low coercive force and ferromagnetic properties are required. CO-NETIC AA wire is corrosion resistant and has an affinity for solder. Meets MIL-N-14411, Composition I.
|
|
ÖLFLEX® CLASSIC 100
Space saving installation due to small cable diameters; High electrical performance due to 4kV test voltage; Increased flexibility due short-twisted conductor layers
Application range
Plant engineering and construction Industrial machinery Air conditioning installations Power station
Dry or damp interiors under medium mechanical load conditions
Fixed installation as well as occasional flexing at free, non-continuously recurring movement without tensile load
Design
Fine strands of bare copper wires
PVC insulation LAPP P8/1
Cores twisted in layers
PVC outer sheath, grey (RAL 7001)
Product features
Flame retardant according to IEC 60332-1-2
Good chemical resistance see Appendix T1
|
|
- Safe choice of cables -
understanding the needs of our customers´ applications, we offer the safety of the right cable matched to specific requirements.
- System compatibility -
the cable design can significantly influence the performance of the energy
and/or data supply system - we ensure the proper alignment of the cable to the system for optimum energy and data transfer.
- Producer independence -
only the performance of the cable is important to us, not its origin - we neutrally choose only the best cables available on the market.
- System guarantee -
each complete Conductix-Wampfler System is provided with a comprehensive guarantee - needless to say, including the cable.
- Conductix-Wampfler cable service -
the graded Conductix-Wampfler Services ensure the reliability of our systems and the availability of our customers’ equipment.
|
|
Characteristics: Flexible cables designed for immersion or submersion in all types of liquids.
Applications: Electrical power supplies for immersed pumps (soft water, wastewater, raw sewage, saltwater, chlorinated water, liquids and foodstuffs).
Brands: PROFIPLAST
|
|
Burglar Alarm Wire (Station Wire)
22/2 solid BC
22/4 solid BC
22/2 stranded (7/30) BC
22/4 stranded (7/30) BC
|
|
Supreme Twisted Premium Pump Cable Polar/Solar®
Features: Polar/Solar Compound
Put-Up: 1000' (06)
500' (05)
Color Code: Multi (30)
|
|
ÖLFLEX® SERVO 700
One common cable for multiple circuits
Application range
Connecting cable between Frequency converter and motor
Connecting cable between servo controler and motor
Plant engineering and construction
Design
Fine strands of bare copper wires
Core insulation: PVC
Control pairs 0.34 mm² colour coded, from 0.5 mm² black with consecutive imprinted numbering.
Control pair(s) screened with laminated aluminium foil and tinned copper wire braid.
The model with one control pair is without laminated aluminium foil (FDF).
PVC outer sheath, grey (RAL 7001)
Product features
Stationary application
Occasional flexing
In dry, damp or wet interiors under medium mechanical load conditions
Outdoor use only with UV protection and in accordance with the temperature range.
Flame retardant (IEC 60332-1-2)
|
|
|
|
|
|
Cord Sets Custom Made in Germany Meet Demand for Low to Medium Quantities
More and more OEM manufacturers are finding difficulties sourcing certain components for custom applications due to the lack of producers who are willing to make small runs at a reasonable price.
With Engelking's cord set offering, it is now possible to source small to medium runs of cord sets in a wide variety of international connector combinations and cable types with the relevant approvals. As manufacture is located in Germany the short lead times and reduced transport and transaction costs can often compete well with products from the far east.
Additionally, renowned German quality means that customers can rely on complete testing and genuine approved products. For EU companies, this means a considerable risk reduction as there is no importer's liability risk to be carried by the buyer and no problems with foreign payments.
A full range of mains plugs to cover virtually any international type as well as cold and warm connectors are available. A range of extension cables is also available in colors to suit customer requirements.
Ansprechpartner:
Herr Thimo Hamma
Marketing & Sales
E-Mail: thimo.hamma@engelking.de
Telefon: +49 (7464) 9865-21
Fax: +49 (7464) 9865-71
|
|

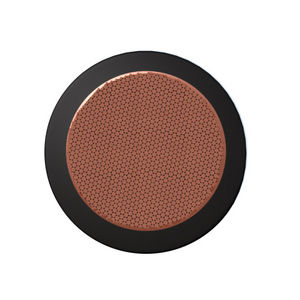

PUR Weld Cable
PUR Control Cable
Regulated Voltage / Medium Frequency Cable
Regulated Voltage Cable
Proportional Valve Cable
PUR Hybrid Cable
Interbus Hybrid Cable
IBS Cable Rugged Line
Special PUR Cable
PUR Hybrid Cable (Cable for Welding Control)
PUR Multi Bus Cable
|
|
|
|
|
|
NUCLEAR INDUSTRY
Present for more than 30 years in the nuclear field, and particularly in non-destructive control engineering and handling of irradiate fuel and waste, LAPP MULLER meets the requirements of national installers, mechanics and electricians, design offices, service provider and engineering , in offering power, control, signal cables..
- FR CABLES, fire retardant
Power cables (type 1 ), Control and Command Cables (CNB 500, CNB 1000, CB 500, CB 1000), multipairs (CPB 500 )
- FR ZH CABLES, fire retardant, halogen free
Power cables (type 1 ZH), Control and Command Cables (CNB 500 ZH, CNB 1000 ZH, CB 500 ZH, CB 1000 ZH), multipairs (CPB 500 ZH )
- FR ZH ROBOCABLESÒ fire retardant, halogen free
Cables for moving applications, drag chains, drum reeling systems, cranes
- HIGH LEVEL RADIATION RESISTANT CABLES
Type 10, radiation resistant to 200 Mrads
MULRADÒ 2, radiation resistant to 500Mrads
- FR AND FR ZH DATA CABLES, fire retardant, halogen free
Coaxials for video, Cables for Bus systems
- FR ZH FLAT CABLES, fire retardant, halogen free
Cables for moving bridge festoons or special moving machines
- CABLES WHICH CAN BE DECONTAMINATED
Cables for inspection robot in nuclear tank, nuclear pool and in coolant channel….
|
|
MISCELLANEOUS
HANDLING
For applications with high mechanical constraints, LAPP MULLER offers a large range of cables with a very good resistance to elongation, breaking, climatic and chemical environment. Lapp Muller works for reelers and gantry crane manufacturers, for ports and airports.
- MULARFLEXÒ
Complete range of reeling cables (with optical fibers, bus conductors…) which can resist to very high mechanical constraints as traction, weight, compression
- 400 HZ CABLES
Multipurpose, very flexible cables, they’ve got a good resistance to abrasion, to weather conditions, to skydrol, to kerosene and to other products used on the airport traffic areas
- FLAT CABLES
Control and power cables for gantry cranes with special environment as for instance fleets of container
These companies trust us :
DELACHAUX, CAVOTECH, PORT AUTONOME DE MARSEILLE et DU HAVRE, SOLLAC DUNKERQUE, AEROPORT DE PARIS….
|
|
HANDLING
For applications with high mechanical constraints, LAPP MULLER offers a large range of cables with a very good resistance to elongation, breaking, climatic and chemical environment. Lapp Muller works for reelers and gantry crane manufacturers, for ports and airports.
- MULARFLEXÒ
Complete range of reeling cables (with optical fibers, bus conductors…) which can resist to very high mechanical constraints as traction, weight, compression
- 400 HZ CABLES
Multipurpose, very flexible cables, they’ve got a good resistance to abrasion, to weather conditions, to skydrol, to kerosene and to other products used on the airport traffic areas
- FLAT CABLES
Control and power cables for gantry cranes with special environment as for instance fleets of container
These companies trust us :
DELACHAUX, CAVOTECH, PORT AUTONOME DE MARSEILLE et DU HAVRE, SOLLAC DUNKERQUE, AEROPORT DE PARIS….
|
|
|
|
|
|
MARINE AND UNDERWATER APPLICATIONS
LAPP MULLER works with ships and underwater building repairs companies (welding, cutting, etc…), offshore oceanographic institutes, research centers, manufacturer of underwater acoustic instrumentation and engineering companies, ect… on the design and manufacture of composite electrical or optical cables.
Long time Immersion
Sever Mechanical Constraints
Watertightness
Floating
- DIVING UMBILICALS
(power, signal, video, hydrolic )
Diving bells, narguiles
- SUB MARINE UMBILICALS
(electrical, optical, hydraulic and mechanical functions )
Submarine works, offshore working and research
- FLOATING CABLES
ROV Tethers, sonar supply
- ARMOURED CABLES
ROV Main Lift Cable, Tow Cable, Submarine antennas
- INSTRUMENTATION CABLES
Seismic and oceanographicals
- INBOARD CABLES
Power and control cables for naval defence and maritime industry
- HIGH TENACITY FIBER CABLES
Stay mast antennas, mooring line for baskets, for buoys
- TERMINATIONS
Design, Realization and Fitting of stainless, titanium or other special alloy terminations.
- CONNECTORS MOUNTING
These companies trust us :
DCN, IFREMER, THALES UNDERWATER SYSTEMS, ECA,, COMEX, SINGLE BUOY MOORINGS...
|
|
|
|
|
|
MAN-MADE MACHINES
LAPP MULLER is the partner of robots, gantries, machine tools manufacturer for the design and the production of power lines, power/control, servomotors and safety control systems.
Bending
Bending/Torsion combined
Oils
Paint, Solvents
- ROBOCABLESÒ F3
Miniaturized cable for drag chain
- ROBOCABLESÒ F1X
Miniaturized cable for very long and high speed drag chain
- ROBOCABLESÒ F1
Cables for robots in bending and torsion combined up to +/-360°/m
- ROBOCABLESÒ F1 GOLD
Cables for robots in bending and torsion combined up to +/-720°/m
- ROBOCABLESÒ UL
All our range of ROBOCABLESÒ with UL homologation
- ROBOCABLESÒ BUS
Cables answering to all existing bus protocols
- ROBOCABLESÒ CLEAN ROOM
Complete range of ROBOCABLESÒ for use in Clean Rooms, with DIN ISO 14644-1 certificate
- HYBRID UMBILICALS
Composite robotics cables interface with electric hydraulic pneumatic and optic
- HARNESS CABLES
- ROBOTS EQUIPMENTS AND SERVICES
These companies trust us :
STAUBLI, COMAU, KUKA, ABB, PEUGEOT CITROEN, NELSON, SAMSUNG, FIAT, DURR, MICHELIN, ROBOTEC….
|
|
MAN-MADE MACHINES
LAPP MULLER is the partner of robots, gantries, machine tools manufacturer for the design and the production of power lines, power/control, servomotors and safety control systems.
- ROBOCABLES F1
Cables for robots in bending and torsion combined up to +/-360°/m
- ROBOCABLES F1 GOLD
Cables for robots in bending and torsion combined up to +/-720°/m
- ROBOCABLES UL
All our range of ROBOCABLES with UL homologation
- ROBOCABLES BUS
Cables answering to all existing bus protocols
- ROBOCABLES CLEAN ROOM
Complete range of ROBOCABLESÒ for use in Clean Rooms, with DIN ISO 14644-1 certificate
- HYBRID UMBILICALS
Composite robotics cables interface with electric hydraulic pneumatic and optic
- HARNESS CABLES
- ROBOTS EQUIPMENTS AND SERVICES
These companies trust us :
STAUBLI, COMAU, KUKA, ABB, PEUGEOT CITROEN, NELSON, SAMSUNG, FIAT, DURR, MICHELIN, ROBOTEC….
|
|
- Zecflex Type: round cable for fitted with body reel, external sheath PVC
- Delflex Type: round cable for fitted with body reel, transparent external sheath
- Drumflex Type: round cable for open reel (multiturn or single loop)
- Flexaf Type: flat cable for reel single loop
NB: All the cables below have a green/yellow driver except the cables 2 drivers. The cables with 1 driver are cables yellow green/for earthing or with the mass.
|
|
cable of earthing for explosive or explosive zone Ex, Atex
with or without pliers of earthing for explosive or explosive zone
|
|
Cable especially designed for the reels of opened the drum type, external sheath yellow polyurethane, very high resistor with traction and torsion.
Braid as yarns polyester coated in the sheath with the cable.
According to DIN standard VDE 0295 Classifies 6. 0,6/1kV.
Use: high frequency of use of the reel, extreme uses, long duration...
|
|
All sections, all lengths, with standard right parts of 0,20m on each side.
Possible manufacture with unequal right parts on each side. Possible lengths according to type of cable: 0,20m - 0,30m - 0,40m etc... 2,80m - 3m.
Spiral pipe (4,5x6 - 6,3x8 - 9,5x12 - 12,6x16) to consult us.
|
|
- No minimum order quantities
- Same day shipment on in-stock products
|
|
Group Cabelte provides low, medium and high voltage cables for the main electrical “utilities” of the Iberian market. In the past few years, the most relevant segments are those of the Renewable Energies and power transmission networks.
Low voltage cables, copper and aluminium, for electric Power Transmission and Distribution
* Cables for house general appliances
* Cables for industrial applications
* Cables for power transmission networks
Medium voltage power cables
* Cables for power transmission and distribution
* Cables for medium voltage industrial networks
* Airfield lighting cables
High voltage power cables
* Insulated cables for 60kV aerial lines
Bare cables for aerial lines
* Phase conductors
* Ground wires
|
|
|
|
|
|
There is a wide range of different construction of low voltage power cables. Neverthless, it is possible to identify 3 constituent parts:
* Conductors ensuring electric power transmission,
* Insulation ensuring the perfect degree of electrical safety, for the specified rated voltage,
* Sheaths for cable external protection, which characteristics essentially regard the application and installation conditions.
The most common materials used on conductors is copper and aluminium because of their high conductivity level and easy handling.
In what concerns the insulation materials, the most used are the compounds of polyvinyl chloride (PVC) and cross linked polyethylene (XLPE). PVC has gradually been replaced by XLPE since the polyethylene has better electrical characteristics and endure higher temperatures.
With regard to cables protection, sheaths are usually made of polymeric materials and, when a higher mechanical protection is required, wire armours or metallic tapes are applied.
The growing need of people and building safety requires the usage in many installations of low voltage cables with improved fire behaviour. The sheaths and insulations of these fire proof cables are made of compounds with low halogen degree and, when submitted to fire, they exhibit low smoke emission, low opacity and low corrosivity emission.
In some special applications, namely in signalling and control circuits, it is important to reduce the electromagnetic interferences so, cables have a metallic screen, generally made of copper or aluminium wires or tapes
|
|
|
|
|
|
Choose XTRA•GUARD® Flexible Cables
to deliver high speed dependability along with the Flexibility needed in cases of difficult and/or complex cable positioning. XTRA•GUARD® Flexible Cables feature unsurpassed flame and moisture resistance, outstanding oil and chemical resistance, premium grade PVC and Polyurethane jackets. XTRA•GUARD® Flexible Cables are UL Recognized or Listed, CSA certified, tested to MIL-C-13777G for Flex Life and are marked. Product performance is verified with certified test reports (CTR).
APPLICATIONS
- Applications Requiring Increased Flexibility
- Machine Tools
- CNC Machine Centers
- Data Processing Equipment
- Automation Equipment
- Material Handling Equipment
- Applications Requiring Continuous Flexing
- Robotics
- Installation in Cable Track
- Assembly Lines
- Industrial Electronic Processing Equipment
- DataComm Connections
- Connecting Sensors & Actuators to Controllers
- Sensor & I/O Interconnects
- Automation Networking
- PLC, Microprocessor & Computer Interconnects
- Twisting & Random Robotic Flexing Applications
- Power Supply to Welding, Painting & Articulating Robots
|
|
|
|
