Very simple and compact design for use as a front-end suction generator for maximum efficiency.
• Decentralised vacuum generation
• Choice of variants in the low pressure range
• Low weight
• 2 design principles (standard T-shape and in-line)
|
|
Vacuum pump, blower or ejector – the choice is yours. The objective is always the same: vacuum! In our product range, you will find everything you need, from the smallest compact ejector to the largest high-performance pump.
- basic ejectors
- inline ejectors
- compact ejectors
- vacuum units
- vacuum pumps
- blowers
- vacuum centers
|
|
Compact ejectors Schmalz X-Pump SXP / SXMP
Application areas :
The new generation of vacuum compact ejectors for the special tasks of the automotive sector and for use in automated vacuum systems in the sheet-metal and plastics industries.
|
|
The Vacuum Generator is designed to produce a low-flow vacuum using the venturi principle. The vacuum generator converts compressed air to a vacuum consuming 4.9 CFH with an 89.6 KP Supply.
When air is allowed to flow through the generator, the high velocity of the air passing through the center port draws a vacuum through the side ports. Two red vinyl caps are provided to cap the unused output port.
|
|
|

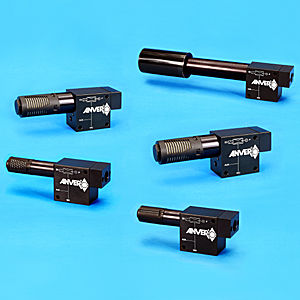

ANVER offers a wide range of Single Stage and Multi-Stage Air-Powered Vacuum Pumps and Venturi Vacuum Generators that operate using plant supplied compressed air, including the following popular styles: Miniature Vacuum Pumps, MSPX Multi- Stage Vacuum Pumps, MSP Multi-Stage Vacuum Pumps, J-Series Single Stage Vacuum Pumps, C-Series Single Stage Vacuum Pumps and Mitey AirVac Air Powered Vacuum Stations.
|
|
|
The main advantage of the VR series coupling Venturi is, it facilitates the direct fitting on the suction cup which allows a simplified connection.
|
|
Vacuum made to measure, perfectly controlled:
Reliable FIPA components: day or night, even for continuous production.
Vacuum generators (Venturi nozzles) for creating a vacuum in more than 400 sizes with suction capacities of 0,4 m3/h – 660 m3/h.
Conveyors in more than 70 sizes with feed-through apertures of Ø3 mm – Ø 50 mm.
|
|
Vacuum generator : SMX
- Ideal to be integrated in Robotics
- Function : gripping, blow, bistable, air saver, vacuum level control
- Suction flow: 3 to 12m³/h
- Self - regulation: to save compressed air stopping the vacuum generator when the vacuum level is reached.
|
|
- To provide an independent vacuum on each suction cup
- Modularity thanks to the choice of many vacuum connectors
- Quick to fix
- Air saving
- Versality and riability of grippings
- Suction flow: 7.2 to 115L/mn
- Vacuum: 74 to 80%
|
|
Designed for the graphics sector and in particular for gripping and separating stacked sheets. They are also recommended for all applications where the use of pneumatic cylinders is best avoided for gripping the items to be lifted by the suckers. Obviously the load must be compatible with the lifting force of the vacuum cylinder.
Rods with useful range from 17 to 30 mm
Cylinder lifting force-800 mbar (80% vacuum): from 0.45 kg to 2.5 kg
|
|
|
|
|
|
HV-SA series
Central ejector based on the Venturi principle. Includes two pressure supply ports and a vacuum connection.
When connection 1.1 is supplied with pressure, the Venturi nozzle generates vacuum.
An integrated check valve at connection 2 maintains vacuum in systems with slight leakage even when the ejector is switched off.
The integrated (automatic) air saving feature turns off the air supply to the ejector when the pre-set upper vacuum level is reached. If the vacuum level drops 150 mbar below this level, the air supply is turned on to the ejector until the pre-set vacuum level is reached again. This fulfills the "EMERGENCY ON FUNCTION".
To release the components that have been picked up, a momentary blow off ejects the components (a signal interrupter integrated into connection 1.2 stops the blow off function after 0.3 seconds).
An external 5/2way double solenoid valve is recommended to control the ejector by alternately activating connection 1.1 (start) and 1.2 (release).
Change "release" to blow off as seen on page 66.
The pressure supply port and vacuum connections are fitted with removable protective filters, which serve to protect the ejector from debris.
A silencer with self-cleaning granular filling (with an air consumption of 150 and 300 Nl/min) or a surface mounted silencer (with an air consumption of 500 Nl/min) is included in the scope of delivery.
|
|
Low cost, compact alternative to traditional vacuum pumps in single and mutli-stage designs. Includes model numbers starting with VG.
Gast's vacuum generators can be used to generate vacuum economically without a single moving part.
·• Patented design extracts maximum amount of energy from compressed air source while optimizing the level of vacuum generation
·• Severe duty series incorporates chemical resistant anodized aluminum with viton seals and valves to handle aggressive gases
·• Lightweight construction provides maximum flexibility and mounting ease
·• Lack of moving parts ensures long life and minimal maintenance
|
|
SERIES AP 72 VACUUM GENERATOR MODULE Venturi — Shut off valve — Check valve Monoblock vacuum venturi, diaphragm valve and check valve
Compact design Manual or pneumatic , actuation options ; Constant bleed option 5, 8 and 15 slpm of N2 @ 80 psig (5.5 bar); 26 in. Hg (100 Torr) of
vacuum generated with 80 psig (5.5 bar) and 60 slpm of Nitrogen
Stainless steel 316
|
|
General description
The Ejector is a mechanical device that generates the necessary vacuum for functioning of the dosing system. It consists of a drive nozzle, mixing chamber, non-return valve and an outlet connection.
Ordinary ejector construction is for pipes with water pressure up to 6 bar.
Reinforced ejectors are used for pipes with water pressure more than 6 bar.
Ejectors with "connection cock" are used when the ejector has to be separated from the pipeline in which there is overpressure.
|
|
# Direct vacuum generator - DP 2010 E
It is a simple valve of compact construction which generates a vacuum when compressed air is applied. The vacuum ceases immediately when the air supply is removed.
# Two-way vacuum generator - DP 2018 F
This two-way valve with integral non-return valve generates a vacuum when air is applied to the pressure port. For applications that do not require a sustained vacuum the valve can be used without the integral non-return valve.
# Vacuum driven liquid sprayer - DP 2005
This valve works on the venturi principial and is primarily used for air driven liquid spraying applications such as conveyor lubrication and sawing machines.
# Vacuum driven liquid sprayer with push-in fittings for ø4 tube - AT.005.4
This valve works on the venturi principial and is primarily used for air driven liquid spraying applications such as conveyor lubrication and sawing machines.
|
|
|
Electric and Compressed Air Powered Vacuum Pumps, Vacuum Generators and Vacuum Stations, Vacuum Valves and Switches, Vacuum Filters and Exhaust Mufflers, Air Movers and Transfer Tubes, and a wide range of Vacuum System Accessories, all available at competitive prices.
|
|
Theis is most significant model base on the multi stage principle Low compressed air are required far massive evacuation volumes at high vacuum flow and high vacuum level rate. V-tec air saving kit is available in this pump in order to maximum reduce the energy usage. VITON & EPDM seals can be also stipulated as option.
|
|
The Kavac series of vacuum products includes a wide variety of conventional vacuum components, as well as more specialised items such as variable vacuum pumps, material transfer and air amplification units. KV's vacuum division is also able to deliver customer-specific vacuum solutions; often developing customised pumps or completely integrated vacuum control systems. A comprehensive range of vacuum cups complements the Kavac range.
|
|
* Large vacuum flows
* Short evacuation time
* Good for handling porous materials or if leakage is present
* Energy-Saving (ES) available
* Available with connection plate in aluminium (AD) and composite PPS (D).
|
|
|
|
|
|
Air Conveyors - Ring-Vac™ Pneumatic Conveying System:
Available in standard and threaded versions for regular and high temperature applications.
Air Conveyors - Ring-Vac™ Pneumatic Conveying System has virtually no moving parts, convey's air at high rates and long distances. Utilizing compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.
Air Conveyors - Ring-Vac™ Pneumatic Conveying System is available in both coated aluminum or high temperature stainless steel. Simply clamp a standard hose size to each end of the Ring-Vac™ to create this high energy conveying system. No moving parts for maintenance free operation with capacity and flow controlled with a pressure regulator.
Air Conveyors - Ring-Vac™ Pneumatic Conveying System is available in 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm), 2-1/2" (64mm), and 3" (76mm) sizes. Any size beyond that can be prohibitive for most applications due to high compressed air requirements.
In addition, beyond 3", the vacuum ability begins to drop significantly except for highly intermittent applications. For applications beyond 3", a blower system often becomes far more economical except in a rare number of possible applications. However, larger size versions are available if required as well as special sizes.
Coated aluminum and high temperature stainless steel Ring-Vac™ Air Conveyor can convey all types of solids in large volumes over great distances with no moving parts.
- Made of an coated aluminum body with no moving parts. High temperature stainless steel models are available for high temperature and corrosive applications.
- Standard sizes to fit standard hose diameter for easy clamping. Threaded versions connect easily to regular pipe thread: 1" (25mm), 1-1/4" (32mm), 1-1/2" (38mm), 2" (51mm), 2-1/2" (64mm), and 3" (76mm). Special sizes can be manufactured if required.
- Utilizing a pressure regulator will control the flow material.
- Instant ON/OFF with no moving parts, no electricity or explosion hazard.
- Longer life in difficult environments than competitive models.
- Ease of use.
- Simple and easy control of material flow.
- Maintenance free operation.
|
|
ICEsonic S-series Air Amplifier.
For an efficient hi-flo operation.
Compact design and no maintenance required.
Products such as ground spices and flour or wastes from textile and paper, fumes and dust can all be conveyed over considerable distance.
Available: Anodised Aluminium and Stainless Steel, from 5 to 50 mm.
|
|
Parker’s RG01 Nozzle, Venturi, and Hot-Gas Bypass Distributors are used for two-phase refrigerant distribution to coils. These need to be mated to a Parker Fixed Restrictor Assembly, a thermal expansion valve (TXV), or other device for refrigerant metering.
* Various nozzle orifice sizes are available for distributor housings.
* Nozzle-style distributor-housings are available for air-conditioning and heat-pump systems.
* Venturi distributors are available with a wide range of configurations and hole sizes.
|
|
Venturis
Venturis add to the cleaning efficiency of pulse-jet baghouses. Standard Filter offers a wide variety of styles and sizes for both top and bottom removal cages. We can supply either spun or cast venturis manufactured from carbon steel, stainless steel, aluminum or galvanized steel.
|
|
MULTIJECTOR® Vacuum Pumps
Multijectoren are suitable optimally for the cycle-applications, since vacuum is built up immediately when switching on the pump. In addition, in continuous operation they offer an outstanding high energy output compared to other pneumatically operated pumps by their highly developed multiple stge nozzle system. An energy comparison to other systems is worthwhile!
Features:
+ small, lightweight and quiet operation
wear-free, no moving parts, highest reliability
vibration-free
arbitrary installation position, easy assembly
no heat generated
oil-free, low maintenance costs
two years warranty
|
|
|
The GVA series mini-venturis are especially suitable for robotic applications, owing to their light weight and quick response time
|
|
Ejector in line: all-purpose product without maintenance
- Unplugable : Suction direct in line
- Handling in dusty surroundings
- Suction flow: 4 to 2100m²/h
- Way Ø : 3.8 to 75 mm
|
|
IN-LINE EJECTORS Art. PVP 1
Designed and constructed to minimize cabling bulk, they are characterized by the alignment of the compressed air supply connection and the vacuum connection
They are outstanding for easy inspection and maintenance
Fitted with suction filters as standard
They are normally cabled on a sucker holder or sucker with support
Capacity: 1 m3/h
Final vacuum: -0.9 bar (90%)
CONNECTOR IN-LINE EJECTORS Art. GV 1/2/3
Designed and constructed to minimize cabling bulk, they are characterized by the alignment of the compressed air supply connection and the vacuum connection.
They are extremely compact and are cabled on a sucker holder or sucker with support.
Suction connection with female thread M5/ 1/8" Gas / 1/4" Gas
Capacity: 0.9 m3/h
Final vacuum: -0.9 bar (90%)
|
|
Multi- stage venturi with a high suction air flow
- Silencer
- Air saving
- Suction flow: 20 to 160m²/h
- Strong and lasting
- Real time vacuum adjustment according to the product
|
|
* Integrated vacuum pump, Air supply/vacuum release control valve, vacuum switch/filter, blowing control valve and silencer in a body.
* Available of individual control
* Automatic vacuum filter cleaning system
* Built in check valve
* Compact size(10mm) and light weight
* Long life time and low noise level
|
|
|
|
