Right angle helical reducers are one of the most popular parts sold by gearbox and mechanical drive components specialist, Ondrives Ltd of Chesterfield, England.
They are heavy duty units with bores available from 6mm to 30mm and ratios from 1:1 to 40:1 as standard. A low backlash version box is also available at less than 30 arc minutes.
Modifications and even complete one-off specials are also available to your requirements - our technical team are happy to quote on a no-obligation basis to suit your application, please send in your sketch or drawing asap.
|
|
|
Worm gearboxes (SG) are noted for their very quiet running. The worm-gear shaft has bearings on both sides. The gear components, made of bronze or steel, and the lubrication ensure a long service life at the rated torque. In many applications, the location of the output shaft at 90° to the motor shaft provides an optimum design solution. On request, worm-gearboxes can be supplied with a hollow output shaft.
|
|
Bonfiglioli worm gears are milestones for the industry worldwide. They succeeded in combining uncompromising quality with state-of-the-art technology and renown price effectiveness.
Absolute flexibility is given by the wide choice of several mounting options, shaft configurations and motor interface, all offered as standard. The helical-worm and the double-worm version, with or without the torque limiter, also add up, creating a highly versatile drive system.
|
|
|
Production of worm gear units and electric motors sizes 030 to130 reduction ratio 1:7 to 1:100
|
|
Compact worm gear
- transmission ratio 1:1, 2:1, 3,25:1, 4,33:1, 5:1, 7:1, 8,5:1, 17:1, 20:1, 30:1
- housing made of die-cast zinc
- gear with synthetic friction bearing
|
|
Description:
Compact worm gear. The input is on the small side of the gear. The gears is particularly suitable for manual operation.
Special features:
- Ratio 1:1, 2.8:1, 4.33:1, 10:1, 13:1, 14:1, 15:1
- Gear with synthetic friction bearing
- Worm and cog wheel made of case hardened steel
- Housing made of die-cast zinc
- Special model with bronze bearing
Customer specific:
On customer request the gear is also available left-handed.
|
|
The patented “BOX” series is made with aluminium housing from size 25 up to 90.
The housing has been designed with parametric CAD SW supported by programs of analysis of the thermal dissipation capacity and the structural resistance/deformation under the effect of working loads.
The wormshaft is made in case hardened steel and ground machined, while the worm wheel is in shell cast bronze. Before being assembled, the worm wheel is submitted to a running-in working period to improve the surface finishing and hardness.
From type 63 and up, 2 taper roller bearings are mounted on the wormshaft.
The combination of this characteristic and 2 nilos permits the mounting of the whole BOX range, from the size 25 to the size 110, in the positions V5 and V6 without any need of additional interventions
The gear unit is equipped with a full set of filler, level and breather plugs, permitting all mounting positions and facilitating the management of the stock.
The sizes 25 up to 90 are supplied with long-life synthetic oil and they don’t require any maintenance
Mating surfaces are machined for a perfect planarity
A paint coat cancels the negative effects of the aluminium porosity and protects the housing from oxidation
|
|
Features: robust cast iron housing
gearing meets up to date international high standards
wide selection of motors and brake-motors including inverter-duty motors
units available for harsh environments
integrally cast foot or flange designs
sleek design for easy cleaning
all bearings selected to provide long and trouble-free operation
high quality sealing for enhanced leakage-protection
output side is integral part of the housing, no bolt-on output cover to cause leakage or gear-misalignment
|
|
Worm wheel reduction gearboxes made by gear reducer specialist, Ondrives Ltd of Chesterfield, UK. A wide and varying range is available as standard with many available off the shelf to suit your just-in-time requirements.
Ratios vary from 5:1 to 120:1 as standard with both shaft and flange input versions available. These precision worm gear reducers can easily be fitted with motors to suit your application and are a cost effective solution. All are anodised a distinctive red colour and can be quickly adapted and modified to your requirements - our technical team will be happy to help you with any special needs you may have.
Specials are ever more popular and with a large and extensive CNC machining department continuously re-stocked with the latest CNC technology, you are guaranteed a high quality, speedy turnaround. Drawings are produced on the latest 3D CAD systems to ensure premium parts are manufactured and you can even try this out on our own e-cad system on our website www.ondrives.com
|
|
Sumer provides a full range of worm whell reducers:
RV35
Rated output torque :from16 to 58 Nm
RV45
Rated output torque :from36 to 141 Nm
RV55
Rated output torque :from60 to 206 Nm
RV63
Rated output torque :from90 to 335 Nm
RV75
Rated output torque :from139 to 472 Nm
RV90
Rated output torque :from227 to 865 Nm
RV110
Rated output torque :from390 to 1512 Nm
Other torques, contact us.
|
|
|
Venture has a variety of Right Angle Worm Drive gearboxes which can be used manually or they are also available motorized with a variety of options including but not limited to built in Limit Switches, a variety of Sensor options, manual crank option all in a variety of DC voltages. These are excellent options for driving your rack and pinion or chain drive application.
|
|

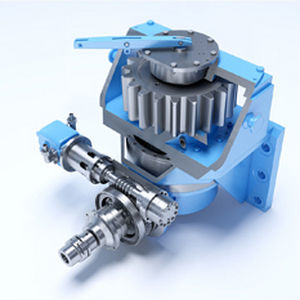

Below are the units available from Renold Gears with right angle shaft configurations. Most units are offered as a modular design with hollow output bore , or the option of plug-in output shaft.
All wormshafts are precision hardened and ground with centrifugally cast wormwheel rims electron beam welded to their centre, for high efficiency and strength.
PM Series - PB Type: Available with 12 standard ratios up to 160:1 with a maximum output torque of 12000Nm; Max Power: 84kW Max Torque: 12000NM.
PM Series - PH Type: Available with a ratio range of 16:1 to 333:1 offering a maximum output torque of 6800Nm; Max Power: 43kW Max Torque: 8400NM.
WM Series: Available with 4" - 9" centres and ratios of 5:1 to 70:1 as a single reduction unit and 75:1 to 4900:1 as a double reduction. Foot, flange and shaft mounted types available; Max Power: 115kW Max Torque: 6000NM.
TW Series - (Titan): Wormgear unit, single reduction up to 70:1 ratio and double reduction up to 4900:1; Max Power: 1361kW Max Torque: 165000NM.
HC Series - (Hercules): Bevel Helical gear unit, foot and shaft mounted types available; Max Power: 2300kW Max Torque: 287000NM.
|
|

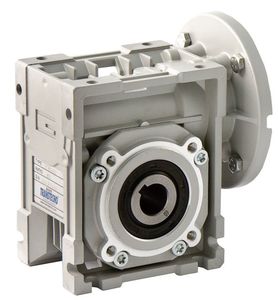

CM wormgearboxes have the following characteristics:
- The frames 030, 040, 050, 063, 075 and 090 are constructed with the Aluminum body, larger sizes are made of cast iron.
- Unit sizes CM030 up to CM075 are filled with long-life synthetic lubricant AGIP TELIUM VSF320.
Unit size CM090 is filled with long-life mineral lubricant AGIP BLASIA 460.
Unit sizes CM110 and CM130 are filled with mineral lubricant AGIP BLASIA 460: replace the oil after approximately 10000 hours running.
- The frames 075, 090, 110 and 130 are supplied with tapered roller bearings on the worm.
|
|
DESCRIPTION:
Leading applications: general purpose, medium and fractional power drives; reduction ratios and efficiencies higher than similar drives with two-stage worm/wheel units.
Design: housings and covers of aluminium die cast up to size 85, of cast iron for size 110; helical stage and single worm/wheel units; ratios up to i=800.
|
|
The high quality of G.M. products is guaranteed through the accuracy of the best quality emploied materials,together with the accuracy in the manufacture.
High quality products are the premium concern at G.M.
The possibility to produce for stock, allows to deliver in a short time both gearboxes and spares.
DOUBLE WORM GEARS AND GEARED MOTORS
MRRV SERIES
P1 0,06 ... 2 kW
Rt 1:4 ... 1:1890
Mt2 9 ... 1980 daNm
|
|
|
As high-performance gearboxes for general mechanical and plant engineering, ATEK worm gearboxes offer you guaranteed long life and a high power transmission capacity with low dimensions.
|
|
|
As high-performance gearboxes for general mechanical and plant engineering, ATEK worm gearboxes offer you guaranteed long life and a high power transmission capacity with low dimensions.
|
|
The latest CAVEX series stands out owing to its high power capacity and compact design in combination with a long service life.
Torque range: up to 360,000 Nm
Power ratings: up to 800 kW
Transmission ratios: up to 4,600
|
|

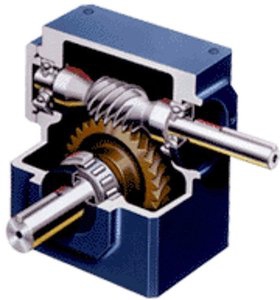

Features & Benefits
Integral SealTite™ expansion chamber-eliminates internal pressure buildup and oil leaks
Compact, light-weight design: cool-running, resists rust, corrosion
Maintenance-Free, factory-filled with synthetic lubricant, sealed for life
Flexible Mounting_Integral feet on 4 sides, face mount register front and real
Available in 4 models to fit every application:
- U-Shaft input, shaft output
- Q-NEMA-C input, shaft output
- UH-Shaft input, hollow output
- QH-NEMA-C input, hollow output
|
|
Falk™ Omnibox® Worm Gear Drives
Ratios: 5:1 to 3,600:1
Power: to 81 kW (100 hp)
Torque: to 10 168 Nm (90,000 lb-in)
14 sizes for foot, flange, or shaft mounting
34 mm thru 254 mm (1.33 inch thru 10 inch) centers
Vertical or horizontal inputs and outputs
|
|
High modularity
- Worm gearboxes suitable for the modular assembling of flanges, feet and torque arm.
High versatility
- 12 sizes with wide range of different mounting positions.
High performances
- Power from 0.09 kW to 55 kW.
- Max torque 3000 Nm.
- Ratios up to 100/1.
High reliability
- Up to size 80, housing built in pressure die-cast aluminium, designed in order to guarantee lightness, strength and rigidity.
- For sizes beyond 80 we supply a sturdy cast iron housing that is also suitable for heavy-duty applications.
- "Zi" shape on worms and wormwheels for a silent working without vibrations.
|
|
DESCRIPTION:
Leading applications: general purpose, medium and fractional power drives
Design: housings and covers of aluminium die cast up to size 85, of cast iron for size 110; single worm/wheel units; ratios up to i=100.
|
|
With power capabilities up to 20HP and maximum output torque capacity of 5,000 lb in., the Series B can provide design flexibility with lasting performance.
The Series B benefits from more than 200 years of cumulative experience in the design and manufacture of high quality mechanical power transmission solutions. With features like our patented motor connection and the unique Swift Kit concept, Series B is the answer for your right angle drive requirements.
|
|
|
Radicon worm gears can trace their origins back to the early 1900’s when David Brown fitted its first standard production unit fitted with a 'patent' worm gear. The name Radicon comes from the three principles of heat dissipation used in the basic design - RADiation Induction CONvection.
|
|
Right-angle gear unit with particularly compact dimensions.
Particularly cost-effective alternative for rated torques up to 800 Nm.
- Sizes:
- S0 – S4
- Rated torque:
- 55 – 960 Nm
- Gear ratio range:
- 6 – 683
- Backlash:
- < 10 – 40 arc min
|
|
Worm wheel set with helical wheel and as to your drawings complete with hub fixed with calibrated bolts.
TECHNICAL CHARACTERISTICS:
Ratio: i = 1/90
Distance between centers: 250 mm
MECHANICAL CHARACTERISTICS:
Carburized, heat treated and completely ground steel alloy worm gear.
UNI bronze wheel.
Steel hub.
APPLICATIONS:
Machine tools.
|
|
Model RA-202 Miniature Right Angle, Single Output Shaft Drive
Model RA-203 Miniature Right Angle, Dual Output Shaft Drive
- RA-203 and RA-202 miniature gear box is 1 7/8" high x 1 7/8" wide x 1 1/4 " deep not including shaft length
- Injection molded nylon gear box
- Hardened steel helical gears
- Input and output steel shafts 1/4 " OD
- Input and output shafts are supported by lubricated nylon bearings
- Net weight is 3 ounces
- Available ratios are 1:1 and 2:1
- Panel mounting is optional
- Rated at 1800 RPM maximum Tech Sheet
- Rated for 1/8 HP continuous duty Tech Sheet
- Note: Units are not suitable as speed increases
|
|
|
|
