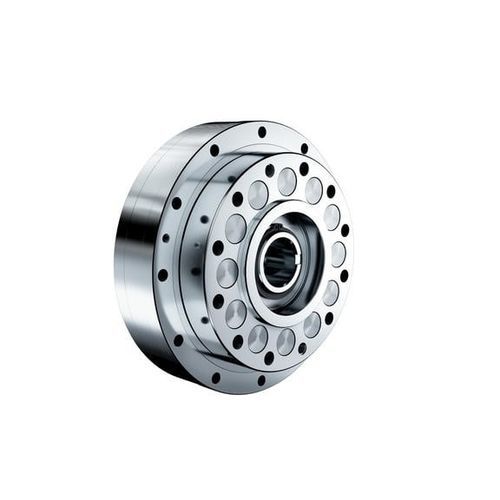

Planetary gearbox A FC concentricsolid-shaft100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- concentric
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
- Configuration
- compact, clamp
- Number of stages
- single-stage
- Performance
- precision
- Applications
- for electric motors, machine, shaft
- Rotational speed
Min.: 1,200 rpm
(7,539.8224 rad.min-1)Max.: 6,150 rpm
(38,641.5896 rad.min-1)- Backlash
0 °
- Gear ratio
29 unit, 59 unit, 89 unit, 119 unit
Description
Cost effective high precision reduction kit
Overview
Reduction kit without output bearing.
Maximum freedom and flexibility for installation of external bearings and for integration in specific machine designs.
Less than 1 arcmin Lost Motion
Pre-filled with grease
Motor adapter on request
Input Shaft Variants:
Keyway
Clamp Ring
Spline
Advantages of Fine Cyclo A-Series
Highly cost effective
Compact Design
Lubricated for life
Small Moments of Inertia
High Overload Capacity
Peak torque for emergency stop up to 24000Nm
High Efficiency
