Cylindrical gearbox A F2
concentricsolid-shaft100 - 200 Nm

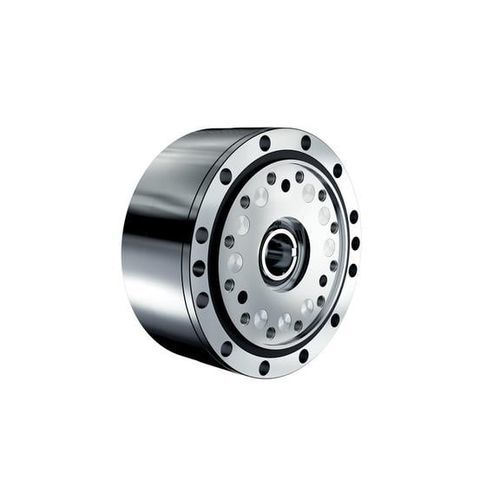

Cylindrical gearbox - A F2 - SUMITOMO Drive Technologies America - concentric / solid-shaft / 100 - 200 Nm
Cylindrical gearbox - A F2 - SUMITOMO Drive Technologies America - concentric / solid-shaft / 100 - 200 Nm
Add to favorites
Compare this product

Characteristics

Type
cylindrical
Shaft orientation
concentric
Shaft configuration
solid-shaft
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Configuration
compact, flange, clamp
Number of stages
single-stage
Performance
precision
Applications
for electric motors, shaft
Rotational speed

Min.: 1,900 rpm
(11,938.0521 rad.min-1)

Max.: 6,150 rpm
(38,641.5896 rad.min-1)

Backlash

0 °

Gear ratio

29 unit, 59 unit, 89 unit, 119 unit, 179 unit

Weight

5 kg, 7.3 kg, 13 kg, 24 kg
(11.02 lb, 16.09 lb, 28.66 lb, 52.91 lb)

Description

Compact all-rounder high precision gearbox Overview All-rounder for all available automation tasks. Compact cylindrical housing. Less than 1 arcmin Lost Motion Fully sealed and ready to use Maintenance free for life 5 different ratios available (depending on size) Many different input shaft styles and types possible Motor adapter on request Variants: F2C-A cylindrical housing F2CF-A flange housing Input Shaft Variants: Keyway Clamp Ring Spline Advantages of Fine Cyclo A-Series Compact Design High Torsional Stiffness up to 445 Nm/arcmin High Overload Capacity Momentary Peak Torque up to 7210 Nm High Efficiency Fully sealed, ready to use Maintenance free for life Lifetime Lubricated For Any Position
