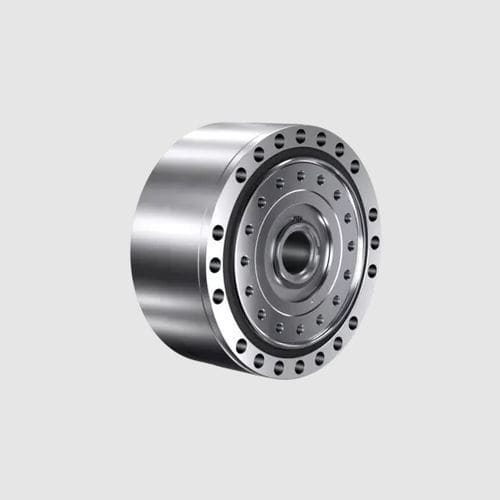

Cylindrical gearbox B F4Ccoaxialsplined shaft100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Shaft orientation
- coaxial
- Shaft configuration
- splined shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm, 1000 - 5000 Nm
- Mounting
- shaft-mounted
- Configuration
- compact, modular
- Number of stages
- single-stage
- Performance
- maintenance-free
- Applications
- industrial, shaft
- Rotational speed
Min.: 1,900 rpm
(11,938.0521 rad.min-1)Max.: 6,400 rpm
(40,212.386 rad.min-1)- Gear ratio
29 unit, 59 unit, 89 unit, 119 unit, 179 unit
- Weight
4.9 kg, 8.4 kg, 14.1 kg, 24.3 kg
(10.8 lb, 18.52 lb, 31.09 lb, 53.57 lb)
Description
All-rounder for all available automation tasks. Compact cylindrical housing.
Less than 1 arcmin lost motion
Fully sealed and ready for use
Maintenance-free
5 different gear ratios available (depending on size)
Modular motor mounting available
Input shaft variants:
Keyway (standard)
Clamping ring (standard)
Splined shaft (optional)
Most important product data
Compact design
High torsional rigidity
up to 540 Nm/arcmin
High overload capacity
High efficiency
Completely sealed
Maintenance-free for life
Lubricated for life for every installation position
