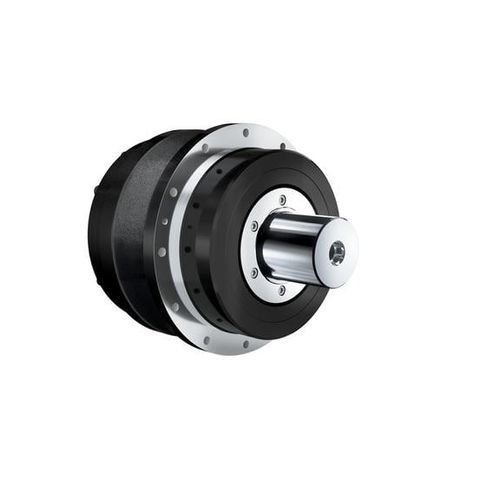

Cylindrical gear reducer A F3 coaxialsolid-shaft50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
- Configuration
- compact, flange
- Number of stages
- single-stage
- Performance
- high-precision
- Applications
- shaft
- Rotational speed
Min.: 1,200 rpm
(7,539.8224 rad.min-1)Max.: 6,150 rpm
(38,641.5896 rad.min-1)- Backlash
0 °
- Gear ratio
59 unit, 89 unit, 119 unit, 179 unit
- Weight
Min.: 8.5 kg
(18.74 lb)Max.: 134 kg
(295.42 lb)
Description
High Precision gearbox with solid output shaft
Overview
Provides extremely high radial capacity at solid output shaft.
Less than 1 arcmin Lost Motion
Maintenance free for life
Motor adapter on request
Input AND Output Shaft Variants:
Solid shaft
Keyway
Spline
Advantages of Fine Cyclo A-Series
Solid Output Shaft
High Overload Capacity
Max. Momentary Peak Torque up to 24000 Nm
Maintenance free for life
Lifetime Lubricated For Any Position
