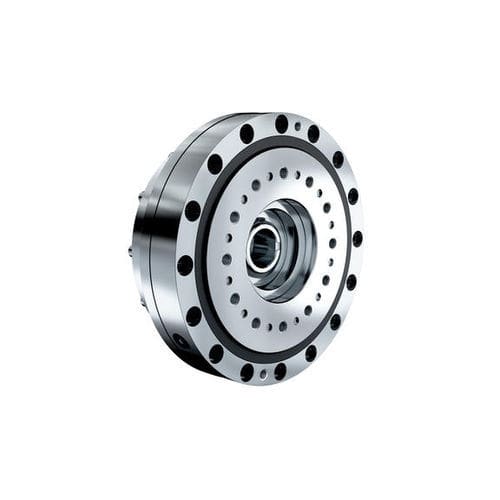

Cycloidal gearbox A F1 coaxialsolid-shaft100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- cycloidal
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
- Configuration
- compact, clamp
- Number of stages
- single-stage
- Performance
- precision
- Applications
- for electric motors, shaft
- Rotational speed
Min.: 1,200 rpm
(7,539.8224 rad.min-1)Max.: 6,150 rpm
(38,641.5896 rad.min-1)- Gear ratio
29 unit, 59 unit, 89 unit, 119 unit, 179 unit
- Weight
Min.: 6 kg
(13.23 lb)Max.: 107 kg
(235.89 lb)
Description
Unit with high capacity cross roller bearing on output shaft
Overview
Combination of zero backlash gearbox and precision cross roller bearing.
Less than 1 arcmin Lost Motion
Sizes 45, 65 and 75 provide extremely high support capacity at output shaft
Fully sealed
Maintenance free for life (cross roller bearing re-greasing requested on sizes 45, 65 and 75)
Motor adapter provided on request
Input Shaft Variants:
Keyway
Clamp Ring
Spline
Advantages of Fine Cyclo A-Series
Low Hysteresis For Accurate Positioning
Compact Design
High Torsional Stiffness
up to 1100 Nm/arcmin
Small Moments Of Inertia
High Overload Capacity
Emergency Stop Torque up to 24000 Nm
High Efficiency
