Spur gearbox C series
200 - 500 Nm100 - 200 Nm500 - 1000 Nm

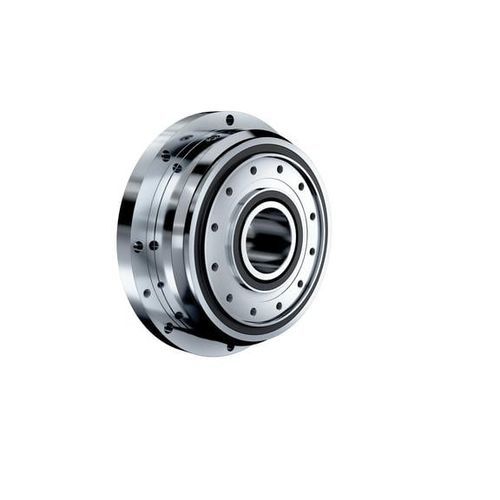

Spur gearbox - C series - SUMITOMO Drive Technologies America - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm
Spur gearbox - C series - SUMITOMO Drive Technologies America - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm
Spur gearbox - C series - SUMITOMO Drive Technologies America - 200 - 500 Nm / 100 - 200 Nm / 500 - 1000 Nm - image - 2
Add to favorites
Compare this product

Characteristics

Type
spur
Torque
200 - 500 Nm, 100 - 200 Nm, 500 - 1000 Nm, 1 - 2 kNm, 2 - 5 kNm, > 10 kNm, 5 - 10 kNm
Configuration
compact
Performance
precision
Applications
transmission, shaft, for electric motors
Other characteristics
large
Rotational speed

Max.: 4,000 rpm
(25,132.7412 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Gear ratio

Max.: 119 unit

Min.: 29 unit

Description

High precision gearbox with large hollow bore Overview High capacity bearing directly integrated in the gearbox housing. Huge hollow bore for easy routing of cables. Less than 1 arcmin Lost Motion Fully sealed Maintenance free for life Large permissible bending moment on output Motor connection with belt transmission or spur gear Pre-stage provided on request Advantages of Fine Cyclo C-Series Low Hysteresis For Accurate Positioning Compact Design High Torsional Stiffness Up to 1030 Nm/arcmin High Overload Capacity Peak torque for emergency stop up to 12577 Nm High Efficiency Maintenance free for life Lifetime lubricated for any position
