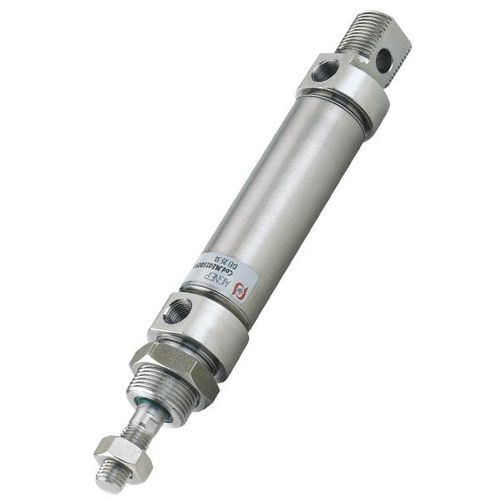

Pneumatic cylinder MFI seriesmagnetic pistondouble-actingstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- magnetic piston
- Configuration
- double-acting
- Material
- stainless steel, brass
- Other characteristics
- mini
- Stroke
Max.: 320 mm
(12.598 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 2 bar
(29 psi)- Rod diameter
16 mm, 20 mm, 25 mm
(1 in, 1 in, 1 in)- Ambient temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Component Parts and Materials
1 Steel AISI 304 Nut
2 Steel AISI 316 Piston rod
3 Polyurethane Rod seal
4 Steel AISI 304 Front cover
5 Steel AISI 304 Nut
6 Sintered bronze Bearing
7 NBR O-RING Seals
8 Neoprene Bumper
9 Brass Piston
10 Polyurethane Piston seal
11 Plastoferrite Magnet
12 Steel AISI 304 Mini cylinder shape body
13 Steel AISI 304 Back cover
Fluids
Filtered and lubricated compressed air as well as non lubricated air.
Functioning
Double-acting magnetic.
Double-acting without magnet.
Catalogs
No catalogs are available for this product.
See all of AIGNEP‘s catalogs
