Flow control valve
ø 0.004'' - 0.0292'' | MIL-FOFC
Beswick Engineering Co, Inc.

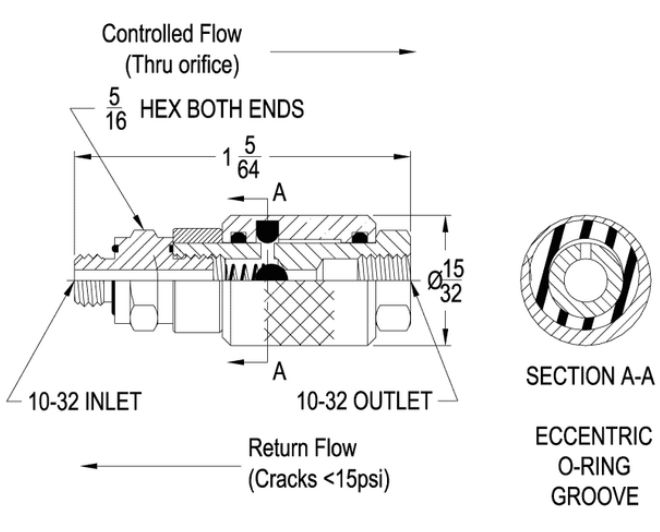

Description: The Beswick MIL-FOFC contains a factory pre-set orifice and poppet check valve. The orifice meters flow in the forward direction, while the check valve permits free return flow. This valve is ideal for applications where improper adjustment of a flow setting could damage the machine or process.
Max Pressure Rating: 200psig
Effective Orifice: Standard orifice sizes available from 0.004” to 0.029” (0.1-7.4 mm). Other orifice sizes also available upon request.
Adjustment: The orifice within this valve is factory pre-set. Rotation of the knurled sleeve will not change the orifice setting.
Approximate Weight: 16g in brass and 303 stainless. Weight will vary slightly, depending on configuration.
Porting: 10-32 external threaded inlet and 10-32 internal threaded outlet ports.
Features
Inline mounting for ease of installation
Tamper proof factory pre set
Material
303 Stainless, Brass
Seals
Buna-N
