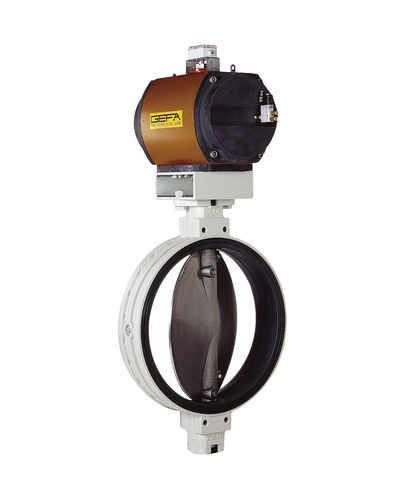

Butterfly valve K 08electricshut-offfor water
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electric
- Function
- shut-off
- Media
- for water, sludge
- Body
- mounting flange, wafer, seat
- Applications
- for the chemical industry, for the food industry, for the petroleum industry
- Other characteristics
- ISO, ANSI, DIN, ATEX
- DN
Max.: 1,200 mm
(47.244 in)Min.: 600 mm
(23.622 in)- Pressure
6 bar, 10 bar, 16 bar
(87 psi, 145 psi, 232.1 psi)- Temperature
Max.: 130 °C
(266 °F)Min.: -30 °C
(-22 °F)
Description
Wafer type butterfly valve for installation between flanges EN 1092-1, PN 6/10/16. One-piece body. Continuous valve stem, internally connected with the valve disc by dowel pins. The connection is shielded from the medium. Changeable seat ring with additional steel support ring as firm rubber-metal connection in compliance with a solid elastomer thickness of approx. 15 – 17 mm.
Face-to-face dimension according to factory standards
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
