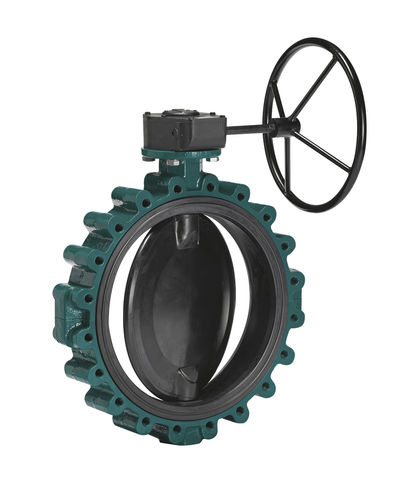

Butterfly valve K 17with handwheelfor waterflange
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel
- Media
- for water
- Body
- flange, lug type, 2-piece, stainless steel, PTFE-lined
- Applications
- for the food industry, for pipelines
- Other characteristics
- ISO, ANSI, DIN, ATEX
- DN
Min.: 350 mm
(13.78 in)Max.: 500 mm
(19.685 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 200 °C
(392 °F)
Description
Lug type butterfly valve for installation between flanges EN 1092, PN 10, ASME class 150. Two-piece body with threaded cams for a firm flange connection from both sides. One-piece disc and stem, bubble-tight up to 16 bar and vacuum-tight. The pipeline can be removed from the flange on one side.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
