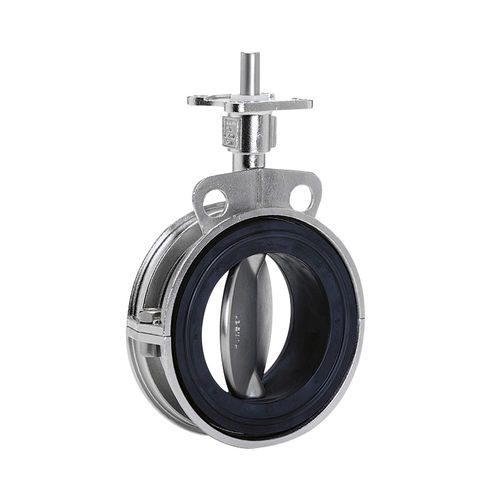

Butterfly valve K 11electrically-actuatedfor waterbeverage
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- electrically-actuated
- Media
- for water, beverage
- Body
- mounting flange, wafer
- Applications
- for the chemical industry, for the food industry, for the petroleum industry, for the pharmaceutical industry
- Material
- stainless steel
- Other characteristics
- ISO, ANSI, DIN, ATEX
- DN
Min.: 25 mm
(0.984 in)Max.: 150 mm
(5.906 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 220 °C
(428 °F)
Description
Wafer type butterfly valve for installation between flanges EN 1092, PN 10/16, ASME class 150. Two-piece stainless steel body with centring lugs. In compliance with all the advantages of the basic series KG9, this completely stainless steel version is offered for all areas, which also demand a corrosion-free use of the external components. This is the case in the food/ beverage industry and in the area of pharmacy, as well as in chemistry and in case of seawater applications.
Face-to-face dimension DIN EN 558 line 20 API 609 table 1
Mounting flange DIN EN ISO 5211
Test DIN EN 12266 P10 P11 P12 leakage rate A
Certifications CE-Marking, TA Luft, FDA approval, food certification 1935/2004, ATEX
