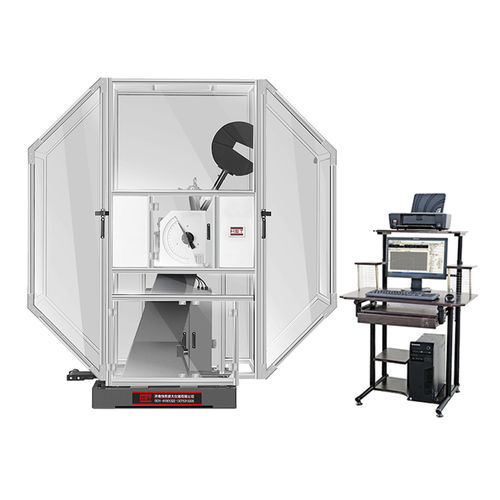

Impact test machine JBW-750C

for materials

1. Capacity: 150J,300J,450J,600J,750J 2. Application JBW-C Computer Control Semi-automatic Charpy Impact Testing Machine is used for measuring the metal material resistance performance under dynamic load,in order to determine the material properties under dynamic load. It’s a necessary testing machine,not only used in the metallurgy,machine manufacture etc areas, but also used for the science research. 3. Standards: ASTM E23, ISO148-2006 and GB/T3038-2002, GB/229-200,ISO 138,EN10045. 4. Main Technical Specifications: ModelJBW-300CJBW-450CJBW-600CJBW-750C Max. impact energy(J) 300450600750 Pendulum Torque160.7695241.1543321.5390401.9238 The distance between the pendulum shaft and impact point750mm Impact speed5.24 m/s Raised angle150° Round angle of the jawR1-1.5mm Round angle of impact edgeR2-2.5mm,R8±0.05mm Angle accuracy0.1° Standard specimen dimension10mm×10(7.5/5)mm×55mm Power supply3phs, 380V, 50Hz or specified by users Net Weight (kg)900
