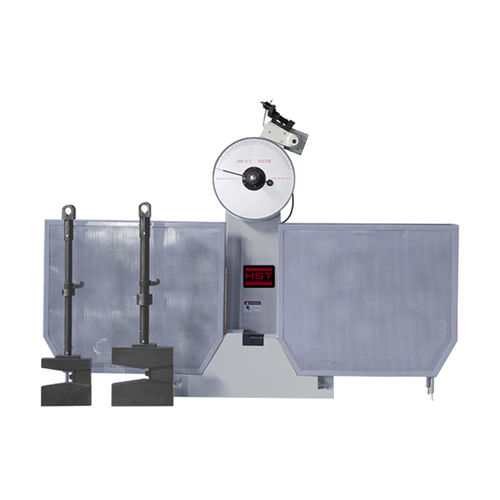

Impact test machine JB-B series

semi-automaticfor materialspendulum

JB Pendulum Impact Testing Machineare used to is used to test anti-impact performance of metal material under dynamic load to judge the quality of material under dynamic load. This machine is semiautomatic control testing machine, easy to operate, high effective. Raising pendulum, impact and pendulum dropping are all controlled by electrical equipment. Technical parameters Max. impact energy - 150/300J - 250/500J Impact speed - 5.2m/s - 5.4 m/s Raised angle - 150° Standard span - 40+0.2mm Round angle of the jaw - R1-1.5mm Round angle of impact edge - R2-2.5mm,R8±0.05mm Angle accuracy - 0.1° Standard specimen dimension - 10mm×10(7.5/5)mm×55mm Power supply - 3phs, 380V, 50Hz Or 220V,60Hz Net Weight (kg) - 450 - 650
