Product description:

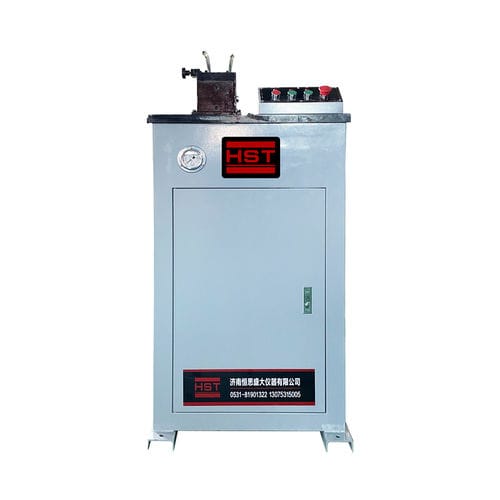

VU-2 Hydraulic Electro-mechanical Broaching Machine Application Impact Specimen Gap Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construct
Application
Impact Specimen Gap Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research
Standards:
ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007
Features
The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life;
This equipment has hydraulic drive double knives and can cut two specimen notches at one time.
Main Technical Specifications
Shape of sample notch - V2 mm,U2mm,(U3mm, U5mm alternative)
Sample size - (10, 7.5, 5)x10x55mm
Cutting mode - Hydraulic
Journey of broach - V2, U2, U3 350mm; U5 380mm
Broaching Speed - 2.5m/min
Broach material - W18Cr4V
Power supply - 380V 50Hz 0.4Kw
Max. Dimension - 660x500x1240mm
Weight - 200kg
