Compression testing machine HST JBW-ZH

universaltensileimpact

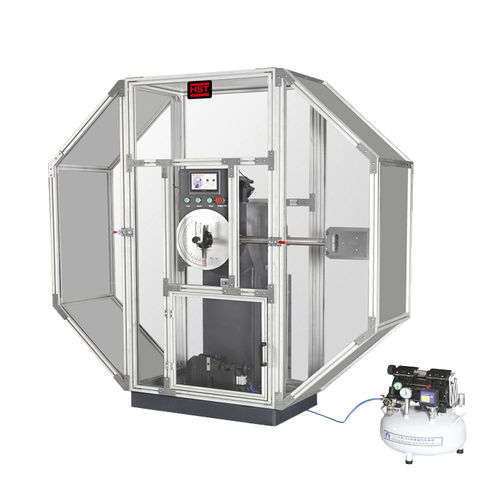

Instrumented Pendulum Impact Testing Machine is strictly designed according to international standard ISO148, DIN 10045 and ASTM E23. impact tester is mainly used to determine the anti-impact capability of metal materials under dynamic load and is capable of doing a large number of impact tests continuously. Adopting the instrumented strain gauged striker and high speed data acquisition system, imported and accurate, the instrumented pendulum impact testing machine can measure the force applied to the test specimen during an impact event. Then, the instrumented test data can be used to calculate the energy absorbed by the test specimen. In addition, the crack initiation and arrest loads can be used in fracture mechanical models. The instrumented Pendulum Impact Testing machine is the essential quality control equipment for metal material manufacturers and QC departments, as well as the necessary instrument of research institutes for new material research. Specifications Impact velocity 5.47 m/s Raised angle 132° Standard anvil span 40 mm Round angle of striker R 1-1.5 mm Round angle of striking edge R2 / R8 Striker thickness 16 mm Distance from Pendulum center to the specimen center 915 mm Size of specimen 10(7.5, 5, 2.5) x 10 x 55mm Power supply 3 phs, 380V, 50Hz, 550W 3 phs, 380V, 50Hz, 1.5KW Load frame dimension 1000*795*1512 1250*950*1630 Load frame dimension(with safety cover) 2280*830*2060 2300*950*2080 Load frame gross weight 1040Kg 1250Kg Display: computer screen display/LCD touch screen display
