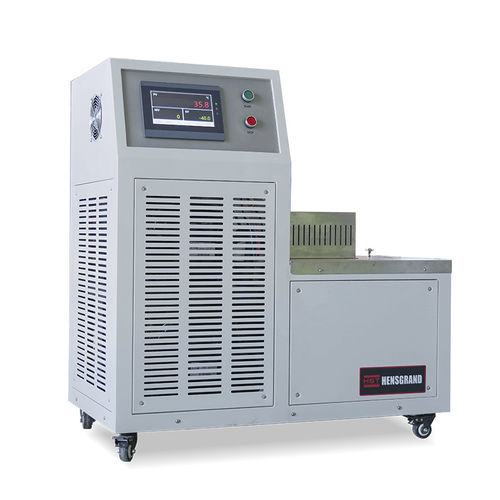

Climatic test chamber DWC seriestemperaturefor calibration
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature
- Application domain
- for calibration
- Temperature
Min.: -100 °C
(-148 °F)Max.: 30 °C
(86 °F)- Interior length
120 mm
(4.72 in)- Interior height
120 mm
(4.72 in)- Interior depth
80 mm
(3.15 in)- External length
800 mm
(31.5 in)- External height
510 mm
(20.08 in)- External depth
480 mm
(18.9 in)
Description
DWC Series Temperature Chamber is designed according to the standard of 'Charpy Notch Impact Test Method for Metal Materials' and adopts compressor cooling technology, which is made up of two sections (Low temperature grade and high temperature grade). It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance.
Standards：
ASTM, E23-02a, En10045, ISO83，GB/T229-2009
Features：
Imported compressor, DANFUS valve, imported evaporation-condensation machine;
Controlled by intellligent instrument, digital presentation temperature value, automatic control temperature, automatic time and alarm.
High security, refrigerate fast, large volume
