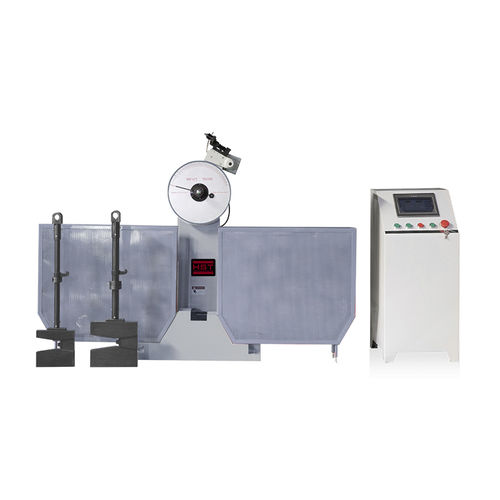

Impact test machine JBS-B

semi-automaticfor materialsdigital

JBS-B Series Touchscreen Digital Display Semi-automatic impact testing machine is mainly used to determine the anti-impact capability of ferrous metal materials with high toughness, especially for steel and iron and their alloy, under dynamic load. This series tester is operated semi-automatically, the pendulum of the machine can be raised or released automatically. Be applicable for continuing testing in different kinds of laboratories and other metallurgy industrial manufactories. Technical Specifications: Impact Energy - 150 J / 300 J - 250 J / 500 J Control Methods - Single Chip Control Display Way - Dial Display and Digital Display The Distance Between The Pendulum Shaft And Impact Point - 750 mm - 800 mm Minimum Reading Value - 1 J - 2 J Impact Speed - 5.2 m/s - 5.4 m/s Pre-rising Angle Of The Pendulum - 150° Specimen Bearer Span - 40+0.2 mm Round Angle Of The Jaw - R 1.0~1.5 mm Round Angle Of Impact Edge - R 2.0~2.5 mm(Optional: R8±0.05 mm) Angle Accuracy - 0.1° Pendulum Torque - M=160.7695N.m 80.3848N.m Standard Specimen Dimension - 10 mm * 10(7.5 or 5) mm * 55 mm Impact Pendulum Configuration - 150 J, 1 PC; 300 J, 1 PC - 250 J, 1 PC; 500 J, 1 PC Power Supply - 3phs, 380V, 50Hz Dimensions - 2124mm * 600mm * 1340mm Net Weight - 480 KG - 610 KG
