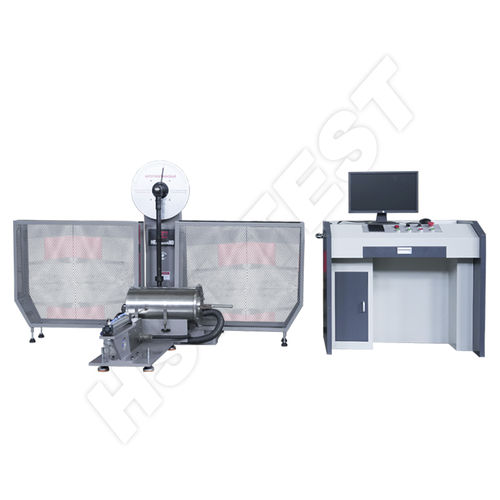

Computer-controlled pendulum impact tester JBW-Z

Izodfor Charpy testing

JBW-Z Computer Control automatic Charpy Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Carry out the functions of zero clearing and automatic return, capturing the value of lost impact energy and pendulum cycle by means of setting up with computer program,and the results can be monitored, stored and printed out. Standards ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007. Specifications Impact energy (J) 150,300 250,500 Value of every grid (J) 0~300(2J), 0~150(1J) 0~500(5J), 0~250(2.5J) Moment of pendulum(N·m) 0~300J(160.7695N·m), 0~150J(80.3848N·m) 0~500J(267.9492N.m), 0~250J(133.9746) Impact velocity (m/s) 5.24 5.4 Distance between pendulum center and sample center (mm) 750 800 Raised angle 150º Standard span (mm) 40+0.2 Round angle of jaws (mm) R1-1.5((1mm is special order) Round angle of striking edge (mm) R2-2.5 or R8±0.05(8mm is special order) Specimen holder support surface angle 11° The impact of the blade angle 30° The impact blade thickness (mm) 16 Size of specimen (mm) 55x10x10 , 55x10x7.5 , 55x10x5 Power supply 3phs, 380V/220V±10%, 50Hz or specified Dimensions (mm) 2124 x 600 x 1340 2144 x 736 x 1390 Gross weight(KG) 550 750
