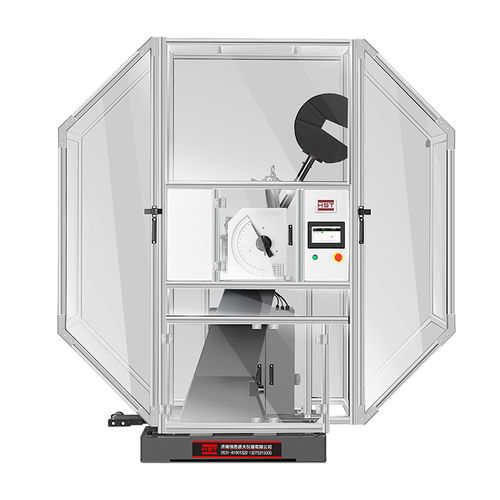

Impact test machine JBS-C semi-automaticfor materialspendulum
Add to favorites
Compare this product
Characteristics
- Test type
- impact
- Operating mode
- semi-automatic
- Test material
- for materials
- Other characteristics
- pendulum
Description
JBS-C Touchscreen Digital Display Semi-automatic Charpy Impact Testing Machine is used formeasuring the metal material resistance performance under dynamic load, in order to determine thematerial properties under dynamic load.
It’s a necessary testing machine, not only used in the metallurgy, machine manufacture etc areas,but also used for the science research.
Technical Specifications:
Control Method
Single Chip Control
Max.ImpactEnergy
300J
450J
600J
750J
ImpactSpeed
5.24m/s
Pre-risingAngleOfThe
Pendulum
150°
AngleAccuracy
±0.1°
SpecimenBearerSpan
40mm
RoundAngleOfTheJaw
R1.0~1.5mm
RoundAngleOfImpactEdge
R2.0~2.5mm(SpecialOrder:R8±0.05mm)
ThicknessOfImpactKnife
16mm
