Impact test machine HST JBW-300B

semi-automaticfor materialspendulum

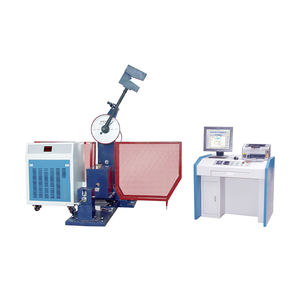

JBW-B series Computer Display Semi Automatic Pendulum Impact Testing Machine are mainly used to determine the anti-impact capability of metal materials under dynamic load. Specifications: Display - computer Display semi automatic Min reading value - 1 J - 2J Impact energy - 150/300J - 250/500J The distance between the pendulum shaft and impact point - 750mm - 800mm Impact speed - 5.2m/s - 5.4 m/s Pre-rising angle of the pendulum - 150° Specimen bearer span - 40+0.2mm Round angle of bearing jaw - R1.0-1.5mm Round angle of impact blade - R2.0-2.5mm,(R8mm) Thickness of impact blade - 16mm Angle accuracy - 0.1° Standard specimen dimension - 10mm×10mm×55mm Sample box capacity - 10 pcs Power supply - 380V, 50Hz , 3 wire and 4phrases Dimensions (mm) - 2124 x 600 x 1340 - 2200 ×650 ×1960 Net Weight (kg) - 450 - 580
