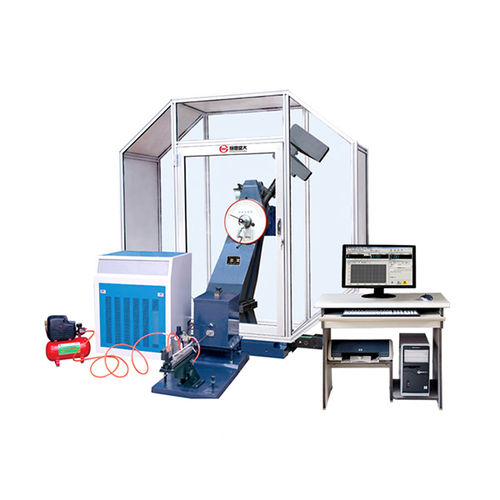

Motorized pendulum impact tester JBDW-CY

computer-controlledIzodfor Charpy testing

Pendulum Charpy Impact Testing Machine is used to determine the impact toughness of metal materialsunder dynamic load according to ISO148, ASTM E23 and EN 10045. It is suitable for laboratory, metallurgyindustry, machinery production, steel plant and other fields. Main Technical Specifications: Max. impact energy(J) 300 450 600 750 Pendulum torque(N·m) M=80.3848 M=160.7695 M=241.1543 M=321.5390 Raised angle(mm) 150°±1° Distance from the axis of support to the center of percussion(mm) 750 Impact speed(m/s) 5.24 Standard span(mm) 40 Round angle of the jaw R (1.0~1.5)mm (1mm is special ordered.) Angle of Taper of Supports 11°±1° Angle of Striking Tip 30°±1° Thickness of Striking(mm) 16 Round corner of support jaw R (1.0~1.5)mm (1mm is special ordered.) Blade curvature radius R (2.0~2.5)mm (8mm is special ordered.) Standard specimen dimension(mm) 55x10x10 , 55x10x7.5 , 55x10x5 Cooling way compressor Compressor refrigeration Encountered an improper argument. Capacity of sample box 20 Range of low temperature -60°c/-80°c/-100°c Speed of sending specimen ≤2S Power supply 3phs, 380V/220V±10%, VAC50Hz or specified
