Condensate pump TP 1
diesel enginecentrifugalstationary

condensate pump
condensate pump
Add to favorites
Compare this product


Characteristics

Fluid
condensate
Operation
diesel engine
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
service
Flow

0.45 m³/h
(15.8916 ft³/h)

Pressure

10 bar
(145.038 psi)

Head

5 m
(16'04" )

Power

0.03 kW
(0.04 hp)

Fluid temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Description

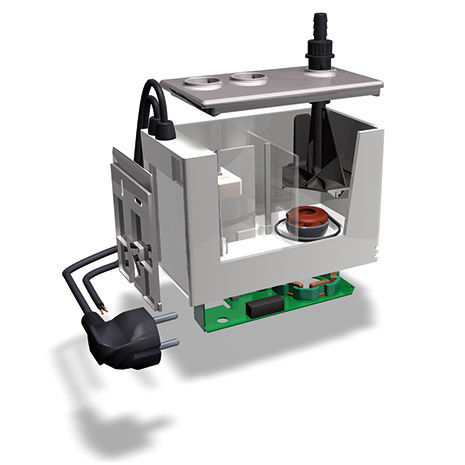

The TP1 is a condensate removal pump unit for condensing boilers and air conditioning systems. By using the innovative spherical motor design, the unit is highly efficient and silent running. Main advantages Complete, ready to use unit including Pump, tank, hose, cable with plug, non return valve and alarm output Compact solution, easy to fit anywhere Minimal energy consumption Fully automatic and blocking safe Easy installation with a Clip-Adapter
