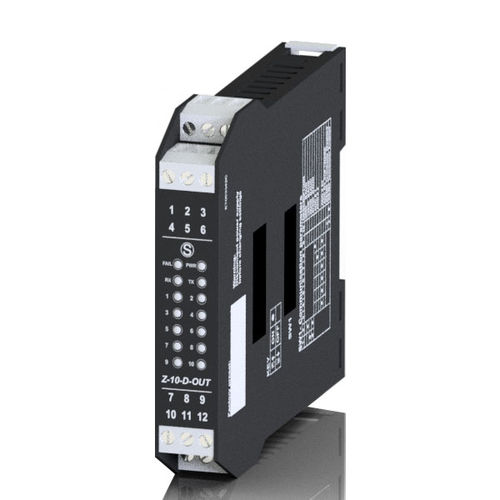

Digital output module Z-10-D-OUT

Modbus RTURS485Modbus

The Z-10-D-OUT is used to drive N.10 MOSFETS from all of the control systems which are able to communicate with the transmission protocol MODBUS RTU through the RS485 serial interface. The digital output max load is 0,5 A (inductive) and 0,5 A (resistive) with maximum switch-on / switch-off cycle frequency of 2 cycles/second. The module is ModBUS Slave and can be coupled with any ModBUS Master device. A 3-way galvanic isolation among Power supply // output // RS485 circuits assures the integrity of your datas. Power supply: - 10..40 Vdc / 19..28 Vac Outputs: - 10-CH optoisolated channels, mosfet semiconductor Outputs protection: - From short circuit and overvoltage with 6..40 Vdc range Diagnostic: - Channel status, programmable Serial communication: - RS485 MosBUS RTU Dimensions: - 17,5 x 112 x 100 mm Mounting: - 35 mm symmetrical 46277 DIN rail
