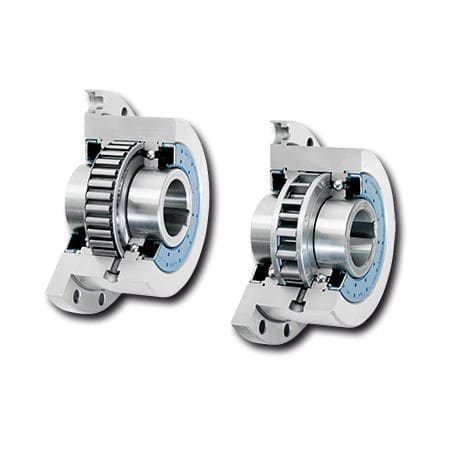

Sprag one-way clutch FBF serieswith internal bearingsfull-facebackstop
Add to favorites
Compare this product
Characteristics
- Technology
- sprag
- Construction
- with internal bearings, full-face
- Applications
- backstop, overrunning clutch
- Torque
Min.: 45 Nm
(33.1903 ft.lb)Max.: 160,000 Nm
(118,009.9439 ft.lb)- Diameter
Min.: 12 mm
(0.47 in)Max.: 300 mm
(11.81 in)- Rotational speed
Min.: 400 rpm
(2,513.27 rad.min-1)Max.: 5,500 rpm
(34,557.52 rad.min-1)
Description
with mounting flange
with sprags, available in four types
Features
Complete Freewheels FBF with mounting flange are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation.
In addition to the standard type, three other types are available for extended service life.
Nominal torques up to 160 000 Nm.
Bores up to 300 mm. A multitude of standardized bore diameters are available with short delivery times.
Application as
- Backstop
- Overrunning Clutch
- Indexing Freewheel
Catalogs
No catalogs are available for this product.
