Sprag one-way clutch FZ series
bearinginternalbackstop

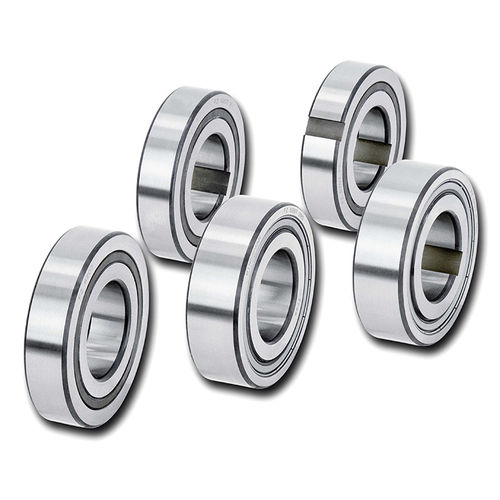

Sprag one-way clutch - FZ series - SIAM RINGSPANN - bearing / internal / backstop
Sprag one-way clutch - FZ series - SIAM RINGSPANN - bearing / internal / backstop
Add to favorites
Compare this product

Characteristics

Technology
sprag
Construction
bearing, internal
Applications
backstop, indexing, overrunning clutch
Torque

Max.: 420 Nm
(309.776103 ft.lb)

Min.: 9 Nm
(6.638059 ft.lb)

Diameter

Max.: 40 mm
(1.57 in)

Min.: 12 mm
(0.47 in)

Rotational speed

Max.: 10,000 rpm
(62,831.8531 rad.min-1)

Min.: 3,000 rpm
(18,849.5559 rad.min-1)

Description

Internal Freewheels FZ are sprag freewheels with bearing support and ball bearing properties. The freewheels are supplied grease-filled for normal operating conditions. The freewheel is built into the customer ­housing. This makes compact, space-saving ­fitting solutions possible. Nominal torques up to 420 Nm. Bores up to 40 mm. Application as Backstop, Overrunning Clutch, Indexing Freewheel.
