Sprag freewheel FBL series
with couplingwith internal bearingsbackstop

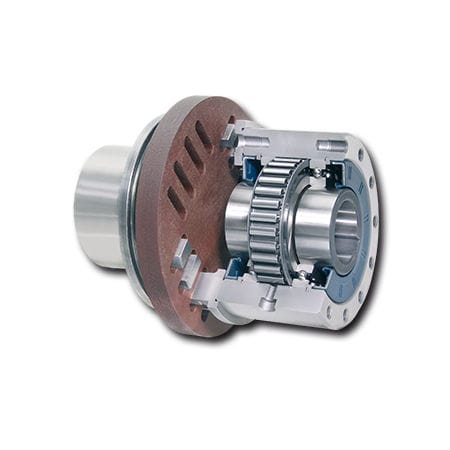

Sprag freewheel - FBL series - SIAM RINGSPANN - with coupling / with internal bearings / backstop
Sprag freewheel - FBL series - SIAM RINGSPANN - with coupling / with internal bearings / backstop
Add to favorites
Compare this product

Characteristics

Technology
sprag
Construction
with coupling, with internal bearings
Applications
backstop, overrunning clutch
Torque

Max.: 8,000 Nm
(5,900.497194 ft.lb)

Min.: 85 Nm
(62.692783 ft.lb)

Diameter

Max.: 140 mm
(5.51 in)

Min.: 14 mm
(0.55 in)

Rotational speed

Max.: 2,600 rpm
(16,336.2818 rad.min-1)

Min.: 750 rpm
(4,712.389 rad.min-1)

Description

The device incorporates complete Freewheels FBL with RINGSPANN shaft coupling, which are sealed sprag free wheels with ball bearings used for coupling two shafts. They are supplied oil-filled and ready for installation. The sprags are available in three types. The freewheels FBL are used generally as overrunning Clutches. This only describes the standard type. Two other types are available for extended service life with bores up to 140 mm and Nominal torques up to 8 000 Nm. Numerous bores are also available. The torsionally stiff shaft coupling can accept large radial and angular shaft misalignments, without reactive forces affecting neighboring bearings. Please contact us for technical enquiry and performance data for this product.
