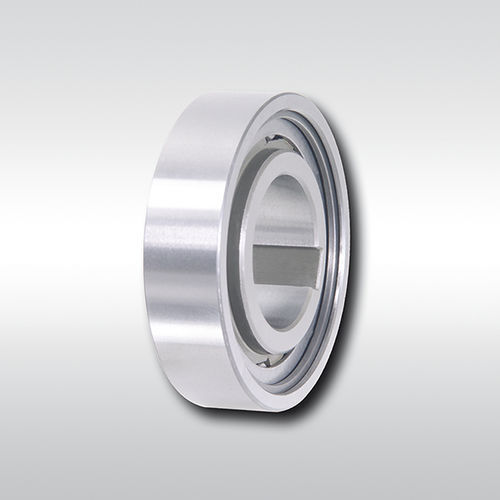

One-way roller clutch FCN...R seriesinternalwithout bearing functionindexing
Add to favorites
Compare this product
Characteristics
- Technology
- roller
- Construction
- internal, without bearing function
- Applications
- indexing, backstop, overrunning clutch
- Torque
Max.: 840 Nm
(619.552205 ft.lb)Min.: 3.2 Nm
(2.360199 ft.lb)- Diameter
Max.: 80 mm
(3.15 in)Min.: 8 mm
(0.31 in)- Rotational speed
Max.: 6,700 rpm
(42,097.3416 rad.min-1)Min.: 690 rpm
(4,335.3979 rad.min-1)
Description
The FCN R series is a line of internal freewheels manufactured by Ringspann. It is suitable use as backstops, overrunning clutches, and indexing freewheels.
The unit features a compact size and space-saving construction, due to the outer ring pressed into the customer housing. It is equipped with rollers, and ball bearing dimensions of series 62. The series comes in different models, with a nominal torque range of 2.5 Nm to 325 Nm. It has a bore diameter range of 8 mm to 40 mm.
