Sprag one-way clutch FB
with internal bearingsfull-faceindexing

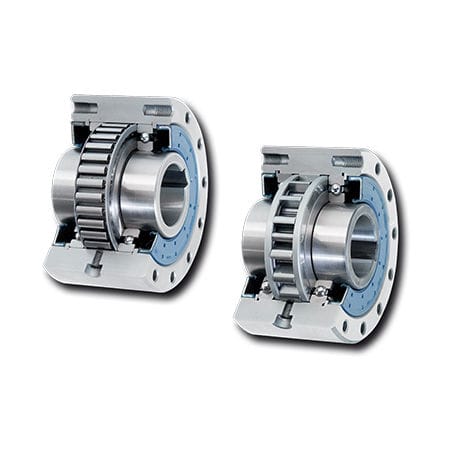

Sprag one-way clutch - FB - SIAM RINGSPANN - with internal bearings / full-face / indexing
Sprag one-way clutch - FB - SIAM RINGSPANN - with internal bearings / full-face / indexing
Add to favorites
Compare this product

Characteristics

Technology
sprag
Construction
with internal bearings, full-face
Applications
indexing, backstop, overrunning clutch
Torque

Max.: 160,000 Nm
(118,009.943884 ft.lb)

Min.: 45 Nm
(33.190297 ft.lb)

Diameter

Max.: 300 mm
(11.81 in)

Min.: 12 mm
(0.47 in)

Rotational speed

Max.: 5,500 rpm
(34,557.5192 rad.min-1)

Min.: 400 rpm
(2,513.2741 rad.min-1)

Description

for bolting to the face with sprags, available in four types Features Complete Freewheels FB are sealed sprag freewheels with ball bearings. They are supplied oil-filled and ready for installation. In addition to the standard type, three other types are available for extended service life. Nominal torques up to 160 000 Nm. Bores up to 300 mm. A multitude of ­standard­ized bore diameters are available with short delivery times. Application as: - Backstop - Overrunning Clutch - Indexing Freewheel
