Hydraulic valve VRLP
pressure-reducingflangecast iron

hydraulic valve
hydraulic valve
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Function
pressure-reducing
Body
flange, cast iron
Other characteristics
ANSI, DIN
DN

Max.: 10 in

Min.: 2 in

Pressure

150 psi, 250 psi, 500 psi

Temperature

Max.: 200 °F
(93 °C)

Min.: -30 °F
(-34 °C)

Description

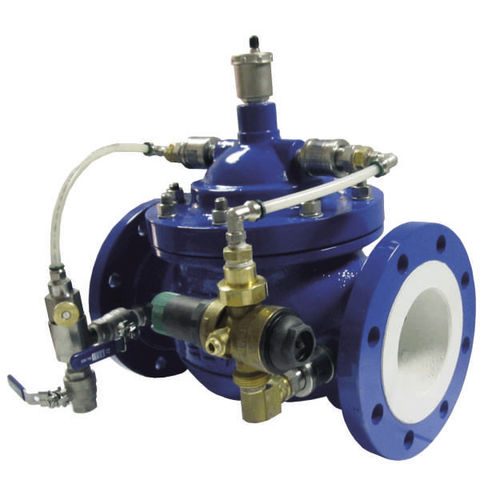

TECVAL model VRLP Pressure Reducing Valve, reduces upstream pressure to a predetermined pressure set downstream in spite of changes in flow or upstream pressure. Devices in ductile iron ASTM A536 flanged according to ANSI or DIN standard, and available in sizes form 2" to 10". Working temperatures between -30 F° to 200F°, and operating pressure up to 250 PSI for ANSI #150 and 500 psi for ANSI #300.
