Float valve VCAhydrauliclevel controlflange
Add to favorites
Compare this product
Characteristics
- Operation
- float, hydraulic
- Function
- level control
- Body
- flange, cast iron
- Other characteristics
- ANSI, DIN
- DN
Min.: 2 in
Max.: 10 in
- Pressure
150 psi, 250 psi, 500 psi
- Temperature
Min.: -30 °F
(-34 °C)Max.: 200 °F
(93 °C)
Description

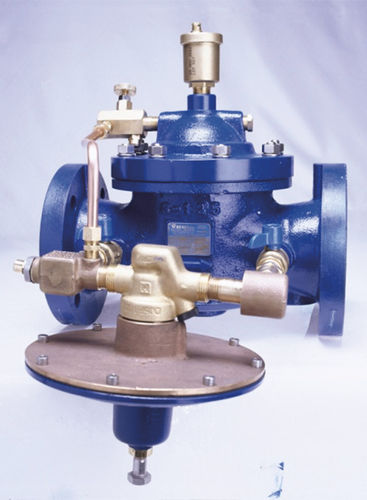

TECVAL model VCA Level Control Valve maintains set reservoir level while preventing operation problems caused by waves or damage to horizontal float device.
Devices in ductile iron ASTM A536 flanged according to ANSI or DIN standard, and available in sizes form 2” to 10”. Working temperatures between -30 °F to 200 °F, and operating pressure up to 250psi for ANSI #150 and 500psi for ANSI #300.
