Levers

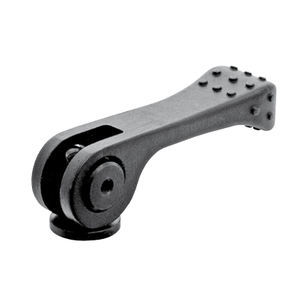

Compact cam levers. Easy clamping and unclamping by cam design. Handle operating position is adjustable to the desired direction. Clamping force: 400N - 700N

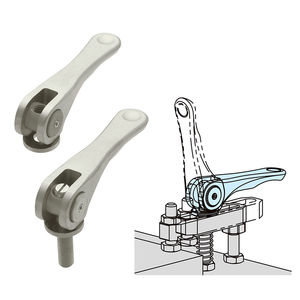

Easy operating steel cam levers. The handle position of stud-type can be set to the desired direction. Clamping force: 0.9kN - 4.8kN

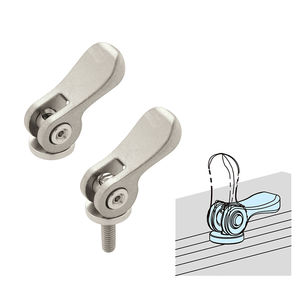

Easy clamping and unclamping steel cam levers. Handle clicks at clamping end. The handle position of stud-type can be set to the desired direction. Clamping force: 0.7kN - 1.4kN

The GAMM LM Control lever body is made up of black mat thermoplastic that has an added glass fiber for added protection and a zinc plated steel stud. It also comes with special bores that has a peculiar handle shape. Custom made labeled ...

The LMT Series from GAMM is a control lever with special bores, different arm lengths as well as variety of handle shapes. Its central lever body is amde up of black mat thermoplastic and reinforced glass fiber with zinc-plated steel ...

The manufacturer has used black phenolic plastic for the construction of this operating handwheel, which makes it more resistant and durable. In addition to the standard version, users can also opt for special metric and inch bores, as ...

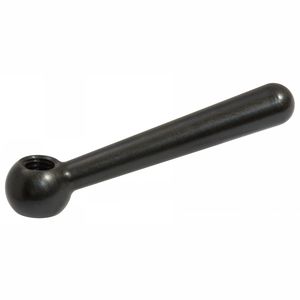

LEVER BODY Turned and black-oxide steel. HANDLE Phenolic based (PF) Duroplast, black colour, glossy finish PLX. (see page 386). STANDARD EXECUTIONS - DIN 6337-L: plain pass-through hole. - DIN 6337-N: threaded pass-through hole.

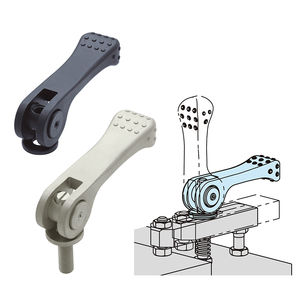

CAM LEVER BODY Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. ROTATING PIN Glossy zinc-plated steel or AISI 303 stainless steel, with threaded hole or threaded stud. CONNECTION AND RETENTION ...

CAM LEVER BODY Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish. ROTATING PIN Glossy zinc-plated steel or AISI 303 stainless steel, with threaded hole or threaded stud. CONNECTION AND RETENTION ...

The Rohde Hand Series FG9 is a grip lever for clamping and securing on machines and technical installations. The handle material is made of Aluminum AlMgSi 0.5. which is available in natural colour or black anodized with dull-bright finish. ...

Stainless Steel-Gear lever handles GN 310 are highly universal options for movement and operation. Actuation of hydraulic valves and control levers eccentric cams are example uses of these standard parts.

Adjustable tension levers GN 213.3 have proved to be ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The threaded insert is connected with the hub via serrations which can be disengaged. Pulling ...

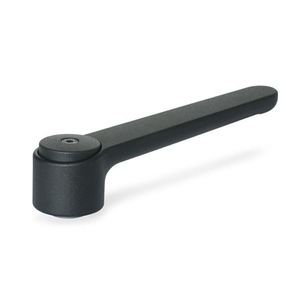

Flat adjustable tension levers GN 126.1 are characterized by their low height and the timelessly elegant design. They are ideal whenever swiveling in a confined space is required or the lever is to be clamped in a particular position. ...

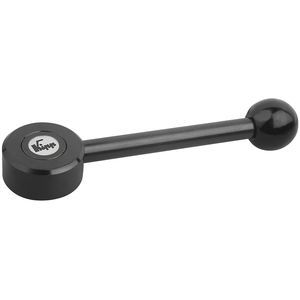

The K0108 consists of a plastic coated, fine texture, and black surface finish. Its steel part quality is class 5.8 with a black plastic ball knob. It has an A, A1, and H1 dimensions available in other lengths. Other internal threads ...

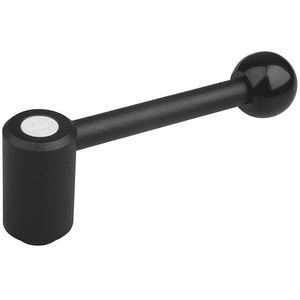

These classic elements find use in machine construction, tool making and plant construction. Material: Steel parts grade 5.8. Ball knob black plastic. Version: Black oxidised. On request: Other external threads, screw lengths ...

Material: Handles cast aluminum EN AC-46200. Thrust washer plastic PA 66 GF 35-X fibreglass reinforced. Hinge pin stainless steel 1.4305. Studs and washer steel grade 5.8 or stainless steel 1.4305. Version: Handles black powder-coated. ...

Ergostyle® Control Levers by ELESA® Levers: Control, ergostyle Material: Glass Fiber Reinforced Technopolymer Finish: Gray/Black Matte Removable Boss Caps Adaptable For Click Positioning Applications Slot Provided For Angle Limit ...

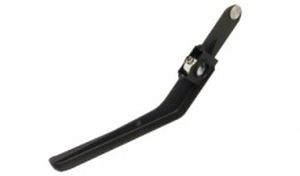

Cablecraft® park brake levers offer superior performance, quality and service life to both the designer and user. • Two distinct lever positions – Over center and off, which are approximately 90° apart • No ratcheting to limit travel ...

The Leverstak hand control is designed to extensively cover the agricultural equipment market. One of its major uses today is in the operating of tractor automatic pick-up hitch systems. Any number of operators may be secured together ...

This light duty industrial push-pull hand control offers a 4.5 to 1 mechanical advantage. Common Applications: Throttle control, set detent control • Adjustable friction control with 2-bolt mounting scheme • Weatherproof cast alloy ...

Control handle for mechanical end effector A control handle that, when integrated in Quick-Lift Systems™, meets the highest standards of ergonomics, working environment, safety and efficiency. Easy to use, thanks to outstanding reaction, regardless ...

Control handle with pneumatic 5/2 valve A control handle that, when integrated with Quick-Lift Systems™, meets the highest standards of ergonomics, working environment, safety and efficiency. Easy to use, thanks to outstanding reaction, ...

Control handle with vacuum ejector A control handle that, when integrated in Quick-Lift Systems™, meets the highest standards of ergonomics, working environment, safety and efficiency. Easy to use, thanks to outstanding reaction, regardless ...

Cam levers with plastic handle internal and external thread, steel or stainless steel Material: Handles and thrust washer plastic PA 66 fibreglass reinforced. Hinge pins stainless steel 1.4305. Studs and washer steel grade 5.8 or stainless ...

Hook clamps with collar and cam lever Material: Body and hook clamp, carbon steel. Handles, cast aluminium EN AC-46200. Thrust washer, plastic PA 66 GF 35-X, fibreglass reinforced. Hinge pin, stud and washer stainless steel 1.4305. Version: Basic ...

Swivel hold-down clamps mini, with cam lever Material: Carbon steel. Version: Tempered and black oxidised. Note: Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed. * Admissible hand ...

Developed for extreme environmental requirements. The requirement of assuring a high permanent IP protection rating on the panel top side led to the development of the ST1, NS0-SFA, and NS2KA control switches with chrome-plated and / or ...

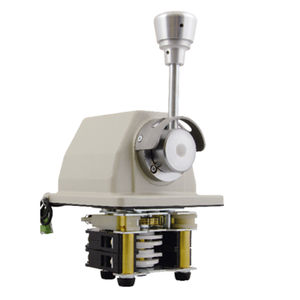

NS0-SFA - Single axis control lever - Powder-coated aluminum housing, contact block with double contact elements and optionally with potentiometer or encoder - Mechanical locking - Friction brake or spring-return

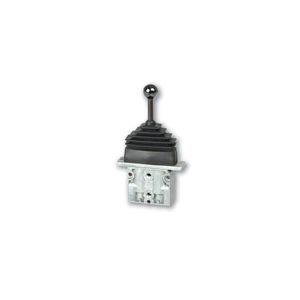

- Robust single axis control lever - Aluminium alloy housing optionally available with aluminum or V2A handle

are combinations of levers and cables for engine speed controls, actuating of brakes, adjusting of flaps or locking and release movements and more.Leverprogram: Small friction control Gear rack controls with or without detent Gear rack ...

The EH 24350 is manufactured by HALDER. This lever handle can operate at a maximum temperature of 110 °C. The materials used in the construction of the gear lever are steel (ground and blackened), and stainless steel number 1.4305 (dull ...

Aluminium excentric tension lever with threaded stud, with knurling nut Lever and knurling nut Aluminium silver or black anodized

Aluminium excentric tension lever with threaded stud, without knurling nut Lever Aluminium silver or black anodized

MO 376-A-H Control Lever MECHANICAL Technology: Contactless Hall Measuring Principle Protection: IP6K9K (Sensor) Safety: Full Redundant Sensor Operating Temperature: -40°C ... +85°C Options: Customized wire harness / ...

MO 375-A Control Lever MECHANICAL Technology: Contactless Hall Measuring Principle Protection: IP6K9K (Sensor) Safety: Full Redundant Sensor Operating Temperature: -40°C ... +85°C Options: Customized wire harness / Connector ...

MO 376-A-B Control Lever MECHANICAL Technology: Contactless Hall Measuring Principle Protection: IP6K9K (Sensor) Safety: Full Redundant Sensor Operating Temperature: -40°C ... +85°C Options: Customized wire harness / ...

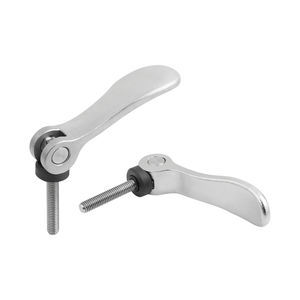

ENGRENAGES HPC has introduced two new cam levers to their range: - Female cam lever - Adjustable male cam lever Material: Handle: stainless steel Z6CN18.10M Electro polished Stop washer: black glass reinforced plastic PA 6 GF 30 Other ...

MATERIAL: Reinforced polyamide. Oils and greases resistant. SURFACE: Satin. COLOUR: Black (RAL 9011). MAIN INSERT: Zinc plated steel partially threaded stud (tolerance 6g).

The operators are designed and manufactured with a large switching surface to assure optimal functionality even when wearing work gloves. The larger surface means a larger indicating area in the case of illuminated buttons, with a more ...

Eccentric Cam Lever - Single (WDS 355) (Available)£12.25 - £15.31 Each WDS 355 Type - Cam Levers & Clamps MATERIAL Carbon Steel hardened Chemical black finish

Use: suitable for mechanical detection of bottle or packed product position. State of supply 1 reinforced polyamide control contact lever, 1 metal insert for photocell in AISI430 ferrous stainless steel, 1 galvanised steel fastening ...

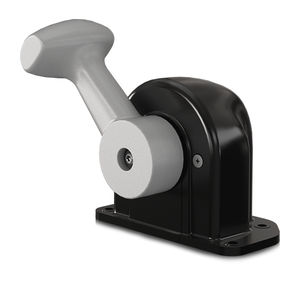

Lever Control LC2/LC2M in marine style. Other versions are also available.

Lever Control LC2/LC2M Marine Style (LC2M) PC2M, PC4M & PC6m also available

Designed for an inside release for the use on L-handles, this product offers a simple low cost handle for use on rotating drive bar applications Available With 5/16" square hole at 90 degree or 45 degree orientation Material Die ...
