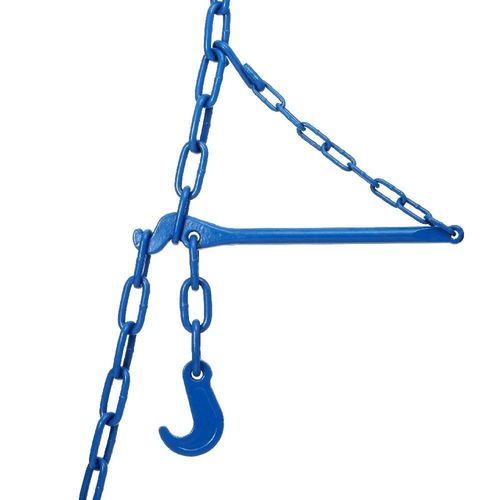

Steel tension lever

rustproof

Overview
The tensioners are available in sizes to match long link lashing chains for Ro-Ro lashing and general cargo lashing. Available as tension lashing levers (load binders) with chain & hook for chain sizes 9 mm, 11 mm and 13 mm.

Introduction

• Applications: Ro-Ro lashing, general cargo securing, heavy equipment transport, offshore module transportation, port cargo handling.
• Material: Drop forged steel.
• Heat Treatment: Quenched and tempered.
• Available Sizes: 9 mm, 11 mm, 13 mm.
• Surface Finish: Powder coated, hot dip galvanized.
• Available Colors: Natural, Green, Red, Orange, Blue, Black.

Product Features

• Construction: Manufactured from drop forged steel with quenched and tempered heat treatment suitable for marine cargo lashing applications.
• Function: Designed to generate and maintain chain tension in Ro-Ro lashing and general cargo securing systems.
• Compatibility: Suitable for use with 9 mm, 11 mm, and 13 mm long link lashing chains.
• Corrosion Protection: Available with powder coated or hot dip galvanized finish for resistance to marine environments.
• Customization: Special dimensions, markings, colors, and specifications can be manufactured according to customer requirements.
• Restriction: Designed for cargo lashing only. Not intended for overhead lifting, crane lifting, personnel lifting, or suspended load handling.

Specification Table
Model | Matching Chain Size | Material | Heat Treatment | Surface Finish
Tension Lashing Lever | 9 mm | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized
Tension Lashing Lever | 11 mm | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized
Tension Lashing Lever | 13 mm | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized

Available Colors
Natural
Green
Red
Orange
Blue
Black

Standards & Quality

• Manufacturing Standards: Manufactured from drop forged steel with quenching and tempering for marine cargo lashing applications.
• Testing Standards: Each tensioner passes dimensional inspection, visual inspection, assembly inspection, and mechanical function verification before shipment.
• Application Standards: Suitable for Ro-Ro lashing, general cargo securing, offshore transport, and marine cargo restraint operations.
• Maintenance Standards: Inspect regularly for corrosion, thread wear, deformation, cracks, coating damage, and excessive wear before use.

Technical specifications

• Product name: Chain Tensioner (Tension Lashing Lever).
• Applications: Ro-Ro lashing, general cargo securing, heavy equipment transport, offshore module transportation, port cargo handling.
• Material: Drop forged steel.
• Heat treatment: Quenched and tempered.
• Available sizes: 9 mm, 11 mm, 13 mm (matching long link lashing chains).
• Surface finish: Powder coated or hot dip galvanized.
• Available colors: Natural, Green, Red, Orange, Blue, Black.
• Function: Generates and maintains chain tension in lashing systems.
• Compatibility: For long link lashing chains of 9/11/13 mm.
• Inspection & testing: Dimensional, visual, assembly and mechanical function checks prior to shipment.
• Limitations: For cargo lashing only — not for overhead or personnel lifting.
