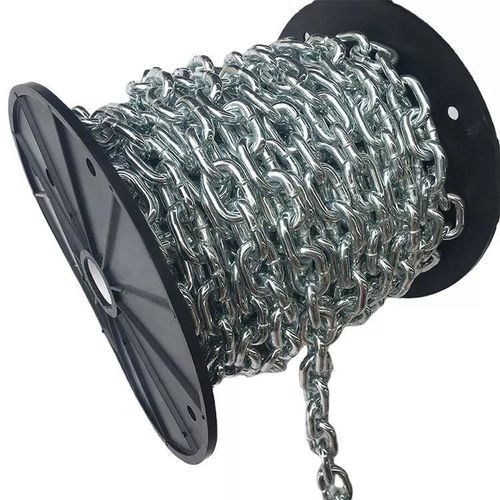

Towing chain UK Standard

steelhot-dip galvanised steelshort-link

Introduction
Production of chains in multiple specifications and finishes suitable for industrial applications.

Parameter
LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | NETWT PER 200FT (KG)
D (IN / MM) | L (MM) | W (MM) | TEST LOAD (KG) | BREAKING LOAD (KG) | NETWT PER 200FT B.F. (KG) | NETWT PER 200FT H.D.G. (KG)
1/8 (3.2 mm) | L: 16 mm | W: 12 mm | Test load: 200 kg | Breaking load: 400 kg | Netwt/200ft B.F.: 11.4 kg | H.D.G.: 11.74 kg
5/32 (4 mm) | L: 18.5 mm | W: 14.5 mm | Test load: 300 kg | Breaking load: 600 kg | Netwt/200ft B.F.: 18.6 kg | H.D.G.: 19 kg
3/16 (4.7 mm) | L: 19 mm | W: 17 mm | Test load: 400 kg | Breaking load: 800 kg | Netwt/200ft B.F.: 26.2 kg | H.D.G.: 27 kg
7/32 (5.5 mm) | L: 20 mm | W: 19 mm | Test load: 550 kg | Breaking load: 1100 kg | Netwt/200ft B.F.: 36.8 kg | H.D.G.: 38 kg
1/4 (6.35 mm) | L: 22 mm | W: 21 mm | Test load: 750 kg | Breaking load: 1500 kg | Netwt/200ft B.F.: 50 kg | H.D.G.: 51.5 kg
5/16 (7.94 mm) | L: 26 mm | W: 26 mm | Test load: 1200 kg | Breaking load: 2400 kg | Netwt/200ft B.F.: 80 kg | H.D.G.: 82.4 kg
3/8 (9.5 mm) | L: 28 mm | W: 32 mm | Test load: 1700 kg | Breaking load: 3400 kg | Netwt/200ft B.F.: 122 kg | H.D.G.: 125.7 kg
7/16 (11.11 mm) | L: 33 mm | W: 36 mm | Test load: 2300 kg | Breaking load: 4600 kg | Netwt/200ft B.F.: 164 kg | H.D.G.: 169 kg
1/2 (12.7 mm) | L: 39 mm | W: 43 mm | Test load: 3000 kg | Breaking load: 6000 kg | Netwt/200ft B.F.: 210 kg | H.D.G.: 216 kg
5/8 (15.8 mm) | L: 45 mm | W: 53 mm | Test load: 4700 kg | Breaking load: 9400 kg | Netwt/200ft B.F.: 334 kg | H.D.G.: 344 kg
3/4 (19 mm) | L: 55 mm | W: 63 mm | Test load: 6800 kg | Breaking load: 13600 kg | Netwt/200ft B.F.: 485 kg | H.D.G.: 499 kg
7/8 (22.2 mm) | L: 64 mm | W: 74 mm | Test load: 9250 kg | Breaking load: 18500 kg | Netwt/200ft B.F.: 656 kg | H.D.G.: 675 kg
1 (25.4 mm) | L: 73 mm | W: 84 mm | Test load: 12150 kg | Breaking load: 24300 kg | Netwt/200ft B.F.: 870 kg | H.D.G.: 896 kg

Standards
Standards available on request.

Technical characteristics / specifications

• Brand: TOPONE Chain
• Product: UK Standard Short Link Chain
• Model / Commercial name: UK Standard Short Link Chain
• Available diameters (D): 1/8\", 5/32\", 3/16\", 7/32\", 1/4\", 5/16\", 3/8\", 7/16\", 1/2\", 5/8\", 3/4\", 7/8\", 1\"
• For each diameter listed: L (mm), W (mm), test load (kg), breaking load (kg), net weight per 200ft in two finishes (B.F. and H.D.G.)
• Examples of diameter → test/breaking/net weight: 1/8 (3.2 mm) → Test 200 kg / Breaking 400 kg / Netwt/200ft B.F. 11.4 kg / H.D.G. 11.74 kg; 1/2 (12.7 mm) → Test 3000 kg / Breaking 6000 kg / Netwt/200ft B.F. 210 kg / H.D.G. 216 kg; 1 (25.4 mm) → Test 12150 kg / Breaking 24300 kg / Netwt/200ft B.F. 870 kg / H.D.G. 896 kg
• Technical images and product views available (photos and parameter diagrams)
