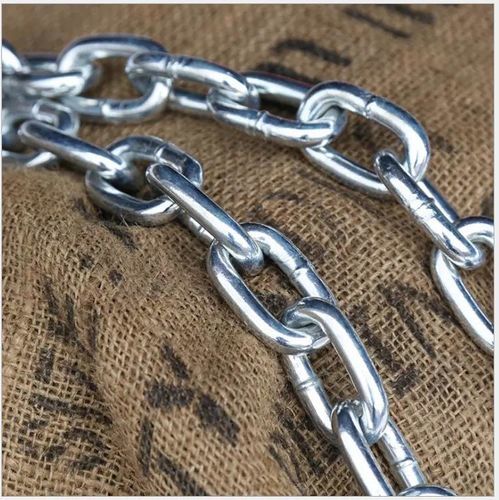

Galvanised steel chain

steelstandard linkmedium-link

Description
Compliant with British standards and CE certified. Designed for general industrial and commercial use including decoration, safety protection and fencing. Available finishes: bright (B.F.) and hot-dip galvanised (H.D.G.). Link diameters range from 1/8" (3.2 mm) to 1" (25.4 mm). Supplied in coils or cut lengths on request.

Parameters
LINK SPECIFICATION | TEST LOAD | BREAKING LOAD | NETWT PER 200FT (KG)
D (IN) / D (MM) / L (MM) / W (MM) / TEST LOAD (KG) / BREAKING LOAD (KG) / B.F. / H.D.G.
1/8 / 3.2 / 20 / 12 / 200 / 400 / 10.4 / 11
5/32 / 4 / 23 / 15 / 300 / 600 / 17.4 / 18
3/16 / 4.7 / 25 / 18 / 400 / 800 / 24.4 / 25
7/32 / 5.5 / 26 / 19 / 550 / 1100 / 34 / 35
1/4 / 6.35 / 26 / 23 / 750 / 1500 / 48.8 / 50
5/16 / 7.94 / 32 / 29 / 1200 / 2400 / 76 / 78
3/8 / 9.5 / 35 / 35 / 1700 / 3400 / 111 / 114
7/16 / 11.11 / 38 / 38 / 2300 / 4600 / 154 / 158
1/2 / 12.7 / 50 / 45.5 / 3000 / 6000 / 194 / 200
5/8 / 15.8 / 60 / 56.7 / 4700 / 9400 / 303 / 312
3/4 / 19 / 76 / 69 / 6800 / 13600 / 432 / 445
7/8 / 22.2 / 90 / 80 / 9250 / 18500 / 586 / 603
1 / 25.4 / 105 / 95 / 12150 / 24300 / 770 / 792

Standards
Complies with British standards; CE certified.

Technical features

• Model: UK Standard Medium Link Chain
• Standards & Certification: Compliant with British standards; CE certified
• Main uses: decoration, safety protection, fencing, general industrial applications
• Finishes available: galvanised (H.D.G.) and blackened/bright (B.F.)
• Available link diameters (D): from 1/8" (3.2 mm) up to 1" (25.4 mm)
• Test loads and breaking loads listed per link size in the parameter block above
• Net weight per 200 ft provided for both bright finish (B.F.) and hot-dip galvanised (H.D.G.) in the table above
