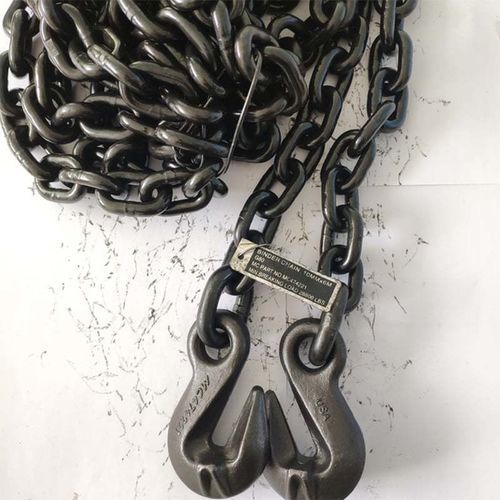

Towing chain Grade 100
alloysteelwith hooks at each end

Towing chain - Grade 100 - Xintai Taida Mirso Co., LTD - alloy / steel / with hooks at each end
Towing chain - Grade 100 - Xintai Taida Mirso Co., LTD - alloy / steel / with hooks at each end
Towing chain - Grade 100 - Xintai Taida Mirso Co., LTD - alloy / steel / with hooks at each end - image - 2
Add to favorites
Compare this product
Go to the Xintai Taida Mirso Co., LTD website for more information

Characteristics

Type
towing
Material
alloy, steel
Other characteristics
with hooks at each end

Description

Product Overview
  • Grade 100 alloy steel binder chain with a 4:1 design factor. Supplied fully assembled with clevis grab hooks on both ends (hooks have no cradle). Intended for lashing down on trailers and cargo restraint; not recommended for overhead lifting.


Introduction
  • Grade 100 chain offers approximately 20% higher working load limit (WLL) compared with an equivalent-size Grade 80 chain, allowing reduction in chain size or quantity for the same application. Although Grade 100 chain material is used in overhead lifting applications, this specific binder/tow chain is configured with grab hooks without a cradle and is not suitable for overhead lifting. Hooks are sized to pass through flatbed trailer rub rails.


Parameters
  • Grade of Chain: NACM and ASTM grading systems; higher grade increases WLL for a given diameter.
  • Working Load Limit (WLL): Maximum recommended load in direct tension on an undamaged, straight length of chain.
  • Proof Test: Minimum tensile force applied during manufacture as an integrity check; not to be used for service or design calculations.
  • Minimum Breaking Force: Minimum tensile force at break during manufacture; an acceptance test only.
  • Overhead Lifting: Any lifting that would place a freely suspended load where dropping could cause injury or damage; this product is not rated for such use.


Standards
  • Name: Grade 100 Binder Chain
  • MOQ: 100 Meters
  • Package: Carton + Steel Pallet


Technical specifications
  • Product name: Grade 100 Binder Chain
  • Material: Grade 100 alloy steel
  • Design factor: 4:1
  • Configuration: Supplied fully assembled with clevis grab hooks on both ends (hooks have no cradle)
  • Intended use: Designed for lashing down; not recommended for overhead lifting
  • Working Load Limit: Approximately 20% increase vs Grade 80 for the same size
  • Alternate names: Tow / Binder, Alloy Log Chain, Grade 10, System 10, Spectrum 10
  • MOQ: 100 meters
  • Packing: Carton + steel pallet
