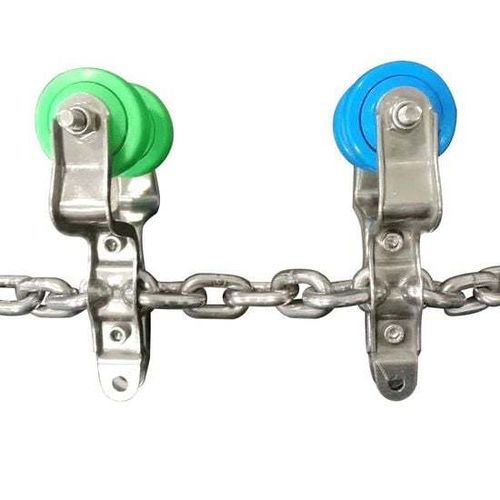

Stainless steel conveyor chain

for the food industrycorrosion-resistantwear-resistant

Introduction
TopOne Chain offers high-performance poultry conveyor chains for slaughterhouse and processing lines. Calibrated, case-hardened chains ensure reliability and food safety.

Product overview
In the fast-paced poultry processing industry, conveyor system failure is not an option. Unplanned downtime, contamination risks, and inconsistent performance can compromise both productivity and food safety. TopOne Chain’s conveyor chains for the poultry industry are engineered to eliminate these concerns, providing a robust and reliable solution for slaughterhouse and processing lines. The chains are super-calibrated for precision movement and case-hardened for exceptional wear resistance. Available finishes include a specialized electro-galvanized finish and stainless steel options to withstand rigorous cleaning protocols and prevent corrosion.

Standard Chain Specifications
Parameter : Specification
Dimension : 8 x 25.4 mm
Pitch (t) : 25.4 mm
Wire Diameter (d) : 8.0 mm
Outside Width (b2 max.) : 26.6 mm
Inside Width (b1 min.) : 9.4 mm
Breaking Force : min. 35-40 kN
Weight : approx. 1.35 kg/m

Other available dimensions
8 x 38 mm, 9 x 28 mm, 10 x 38 mm

Material and Treatment Standards
Feature : Standard
Surface Hardness : 750-800 HV10 Minimum
Case Hardening Depth : 0.5 mm - 0.6 mm
Finish : Electro-galvanized (25 Microns)
Corrosion Protection : Passivated and sealed for enhanced durability
Material Options : High-grade alloy steel, Stainless Steel (AISI 304/316L)
Certification : Test Certificate EN 10204-3.1 available

Key Quality Features

• Super-Calibrated: Ensures precise and smooth operation with minimal vibration.
• Homogeneous Heat Treatment: Advanced furnace system guarantees consistent hardness and strength across every link.
• Superior Corrosion Resistance: Specialized galvanizing process designed to withstand harsh cleaning chemicals and high-humidity environments.

Technical specifications

• Dimension: 8 x 25.4 mm
• Pitch (t): 25.4 mm
• Wire Diameter (d): 8.0 mm
• Outside Width (b2 max.): 26.6 mm
• Inside Width (b1 min.): 9.4 mm
• Breaking Force: min. 35-40 kN
• Weight: approx. 1.35 kg/m
• Other available dimensions: 8 x 38 mm; 9 x 28 mm; 10 x 38 mm
• Surface Hardness: 750-800 HV10 Minimum
• Case Hardening Depth: 0.5 mm - 0.6 mm
• Finish: Electro-galvanized (25 Microns)
• Corrosion Protection: Passivated and sealed
• Material Options: High-grade alloy steel; Stainless Steel (AISI 304/316L)
• Certification: Test Certificate EN 10204-3.1 available
