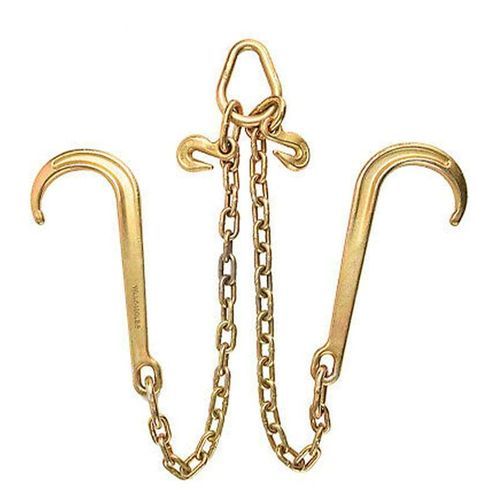

Towing chain 70

carbon steelhigh-strengthfor heavy loads

Introduction
Grade 70 Transport Chain is designed for load securement in the transportation sector. It typically provides about 20% higher working load limit compared with High Test (Grade 43) chain. Also referred to as Transport Chain, System 7 or Spectrum 7. Grade 70 Transport Chain is NOT approved for overhead lifting.
Grade 70 is a heat‑treated, high‑strength chain commonly used for tow and binder applications across agriculture, construction, industrial, trucking and forestry sectors.
All Grade 70 Transport Chain is 100% proof tested. Certificates are available free of charge upon request at the time of order placement.

Parameters
Columns: Size ; D tolerance/value ; Inside Length A ; A tolerance ; Outside Width B ; B tolerance ; Working Load (KG) ; Test Load (N) ; Breaking Load (N) ; Weight Per M (KG)
3 ; 0.5 ; 26 ; 1.2 ; 12 ; 0.6 ; 55 ; 1050 ; 3200 ; 0.15
4 ; 32 ; 1.5 ; 16 ; 0.8 ; 100 ; 2000 ; 6000 ; 0.27
5 ; 35 ; 1.8 ; 20 ; 1 ; 160 ; 3150 ; 10000 ; 0.43
6 ; 42 ; 2 ; 24 ; 1.2 ; 224 ; 4500 ; 14000 ; 0.63
7 ; 49 ; 2.5 ; 28 ; 1.4 ; 300 ; 6000 ; 18000 ; 0.86
8 ; 52 ; 2.5 ; 32 ; 1.6 ; 400 ; 8000 ; 25000 ; 1.1
9 ; 59 ; 3 ; 36 ; 1.8 ; 530 ; 10500 ; 32000 ; 1.41
10 ; 1 ; 65 ; 3.2 ; 40 ; 2 ; 630 ; 12500 ; 40000 ; 1.75
11 ; 72 ; 3.4 ; 44 ; 2 ; 790 ; 15800 ; 47500 ; 2.11
12 ; 78 ; 3.6 ; 48 ; 2.3 ; 940 ; 18800 ; 56500 ; 2.55
13 ; 82 ; 4 ; 52 ; 2.5 ; 1000 ; 21200 ; 63000 ; 2.95
16 ; 100 ; 5 ; 64 ; 3.2 ; 1600 ; 33000 ; 100000 ; 4.45
18 ; 113 ; 5.2 ; 70 ; 3.2 ; 2120 ; 42300 ; 127000 ; 5.65
19 ; 119 ; 5.6 ; 72 ; 3.4 ; 2370 ; 47300 ; 142000 ; 6.25
20 ; 120 ; 6 ; 75 ; 3.8 ; 2500 ; 50000 ; 160000 ; 7
22 ; 127 ; 6 ; 82 ; 4 ; 3170 ; 63300 ; 190000 ; 8.55
25 ; 140 ; 6.6 ; 88 ; 4.2 ; 4090 ; 81700 ; 245000 ; 10.9
28 ; 152 ; 7 ; 96 ; 4.7 ; 6000 ; 120000 ; 300000 ; 13.9
32 ; 171 ; 7.8 ; 108 ; 5.2 ; 8000 ; 160000 ; 400000 ; 18.2

Standards
Standard: Grade 70 Transport Chain
MOQ: 100 Meters
Package: Carton + Steel Pallet

Technical specifications

• Product name: Grade 70 Transport Chain
• Alternative names: Transport Chain, System 7, Spectrum 7
• Intended use: Load securement, tow and binder chain for agriculture, construction, industrial, trucking and forestry
• Not approved for overhead lifting
• Material / treatment: Heat‑treated high‑strength chain (Grade 70)
• Proof testing: 100% proof tested; certificates available upon request
• Minimum order quantity (MOQ): 100 meters
• Packaging: Carton + Steel Pallet
• Detailed dimensional and strength table provided in Parameters section above (sizes 3 mm to 32 mm with working, test and breaking loads and weights per meter)
