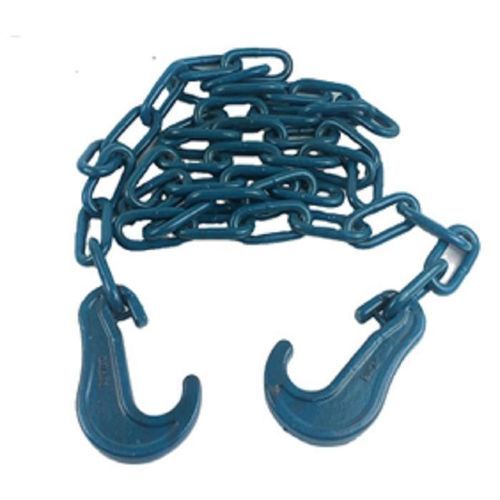

Galvanised steel chain LCL series

powder-coated steelforged steelforged

Introduction
Long Link Chain Lashings with End Fittings are designed for Ro-Ro lashing and general cargo securing applications. The assemblies combine long link chain, drop forged end fittings, and compatible tensioning systems to provide secure cargo restraint during marine transportation. Multiple chain sizes are available to match different vessel securing requirements and cargo weights.

Applications
Ro-Ro vehicle lashing, trailer securing, heavy equipment transport, offshore module transportation, general cargo restraint.

Material
Long link chain with drop forged end fittings.

Heat Treatment
Quenched and tempered.

Compatible Tensioners
9 mm, 11 mm, 13 mm tension lashing levers (load binders matched to the chain sizes).

Surface Finish
Powder coated or galvanized.

Available Colors
Natural, Green, Red, Orange, Blue, Black.

Product Features

• Long link design for flexible adjustment and easy connection to hooks, shackles, turnbuckles and deck fittings.
• Drop forged end fittings for reliable load transfer and repeated service.
• Corrosion protection with powder coating or galvanization for marine and offshore environments.
• Suitable for Ro-Ro vessels, cargo ships, offshore transport and project cargo securing.
• Customizable chain lengths, end fittings, markings, colors and specifications on request.
• Restriction: for cargo lashing only; not for overhead lifting or suspended loads.

Parameter (Models)
Model | Chain Size | End Fittings | Material | Heat Treatment | Surface Finish
LCL-9 | 9 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized
LCL-11 | 11 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized
LCL-13 | 13 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized

Chain Size Specifications
Chain Size | D | L | L1 | MBL (kN) | WEIGHT (kg)
9 | 11 | 575 | 275 | 100 | 3.4
11 | 12 | 585 | 345 | 150 | 4.5
13 | 14 | 595 | 385 | 200 | 5.6

Standards
Manufactured using drop forged steel components with quenched and tempered heat treatment for marine cargo lashing systems. Each assembly passes dimensional inspection, component inspection, assembly verification and mechanical function testing before shipment. Suitable for Ro-Ro lashing, general cargo securing, offshore transportation and marine cargo restraint operations. Inspect regularly for corrosion, chain elongation, hook wear, deformation, coating damage and excessive wear before use.

Technical specifications

• Series: LCL series (models: LCL-9, LCL-11, LCL-13)
• Materials: Drop forged steel for end fittings; long link chain construction
• Heat Treatment: Quenched and tempered
• Surface Finish: Powder coated or galvanized
• Available Colors: Natural, Green, Red, Orange, Blue, Black
• Compatible Tensioners: 9 mm, 11 mm, 13 mm tension lashing levers
• Application Areas: Ro-Ro vehicle lashing, trailer securing, heavy equipment transport, offshore module transport, general cargo restraint
• Restriction: For cargo lashing only — not for overhead lifting or suspended loads
• Model LCL-9: Chain size 9 mm — MBL 100 kN — Weight 3.4 kg
• Model LCL-11: Chain size 11 mm — MBL 150 kN — Weight 4.5 kg
• Model LCL-13: Chain size 13 mm — MBL 200 kN — Weight 5.6 kg
