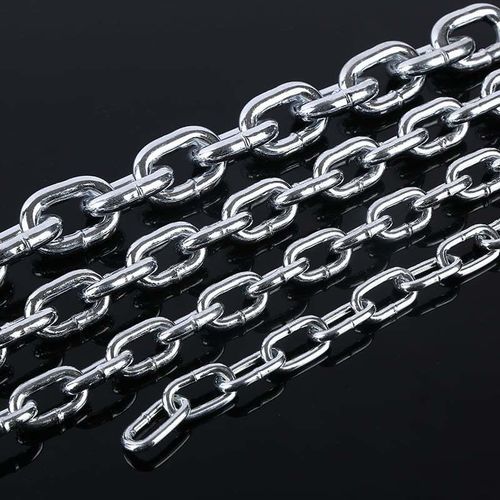

DIN 766 chain (short-link welded chain) is the dimensional standard reference for short link chains. Nominal chain size denotes the diameter of the link material. Available in multiple steel grades and surface finishes for corrosion resistance and general industrial use. Intended for anchor chains, fences, barriers and anti-theft applications; not suitable for overhead or overload lifting.

Introduction

• Material options: AISI 316 stainless steel, carbon steels (Q235, Q195), high carbon steel, manganese steel, CM490, super carbon steel
• Surface treatments: primary color, electro-galvanizing, hot-dip galvanizing, blackening, plastic spraying, dipping paint
• Packing options: sacks, wrapped reels, plastic drums, iron drums, wooden boxes, cartons
• Chain type: welded short-link chain
• Important: not for overhead or overload lifting

Usage

• Anchor chains
• Fences and barriers
• Anti-theft and security installations
• General non-lifting industrial applications

Parameters
Table header: SIZE | +/-MM | INSIDE LENGTH (MM) | +MM | -MM | INSIDE WIDTH (MM) | OUTSIDE WIDTH (MM) | LENGTH PER 11 LINKS (MM) | +MM | -MM | WEIGHT PER M (KG)
2 | 0.2 | 12 | 0.2 | 0.2 | 3.5 | 7.5 | 132 | 1 | 0.5 | 0.07
3 | 0.2 | 16 | 0.2 | 0.2 | 4.2 | 11 | 176 | 1.4 | 0.7 | 0.16
4 | 0.2 | 16 | 0.3 | 0.2 | 5 | 13.7 | 176 | 2.1 | 1.1 | 0.32
5 | 0.2 | 18.5 | 0.4 | 0.2 | 6 | 17 | 203.5 | 2.4 | 1.2 | 0.5
6 | 0.2 | 18.5 | 0.4 | 0.2 | 7.2 | 20.2 | 203.5 | 2.4 | 1.2 | 0.8
7 | 0.3 | 22 | 0.4 | 0.2 | 8.4 | 23.8 | 242 | 3 | 1.4 | 1.1
8 | 0.3 | 24 | 0.4 | 0.2 | 9.6 | 27.2 | 264 | 3.2 | 1.5 | 1.4
9 | 0.4 | 27 | 0.5 | 0.3 | 10.8 | 30.6 | 297 | 3.6 | 1.8 | 1.8
10 | 0.4 | 28 | 0.5 | 0.3 | 12 | 34 | 308 | 3.7 | 1.9 | 2.2
11 | 0.4 | 31 | 0.5 | 0.3 | 13.2 | 37.4 | 341 | 4 | 2 | 2.7
12 | 0.3 | 36 | 0.6 | 0.3 | 14.4 | 40.8 | 396 | 4.4 | 2.2 | 3.1
13 | 0.5 | 36 | 0.6 | 0.3 | 15.6 | 44.2 | 396 | 4.6 | 2.4 | 3.8
14 | 0.6 | 41 | 0.7 | 0.4 | 16.8 | 47.6 | 451 | 5.4 | 2.7 | 4.4
16 | 0.6 | 45 | 0.8 | 0.4 | 19.2 | 54.4 | 495 | 6 | 3 | 5.7
18 | 0.9 | 50 | 0.8 | 0.4 | 21.6 | 61.2 | 550 | 6.6 | 3.3 | 7.3
19 | 0.4 | 53 | 0.9 | 0.4 | 22.8 | 64.6 | 583 | 7 | 3.7 | 7.97
20 | 1 | 56 | 1 | 0.5 | 24 | 68 | 616 | 7.4 | 3.7 | 9
23 | 1.2 | 64 | 1.1 | 0.5 | 27.6 | 78.2 | 704 | 8.4 | 4.2 | 12
26 | 1.3 | 73 | 1.2 | 0.6 | 31.2 | 88.4 | 803 | 9.6 | 4.8 | 15
28 | 1.4 | 78 | 1.3 | 0.65 | 33.8 | 95.2 | 858 | 10.2 | 5.1 | 18
30 | 1.5 | 84 | 1.4 | 0.7 | 41 | 102 | 924 | 11 | 5.5 | 19.5
32 | 1.6 | 90 | 1.5 | 0.75 | 43 | 108.8 | 990 | 11.8 | 5.9 | 23

Standards

• DIN 766 chain (short link chain)
• DIN 764 chain (medium link chain)
• DIN 763 chain (long link chain)
• DIN 5685 chain
• DIN 22252 chain

Characteristics / technical specifications

• Model name: Din 766 Chain
• Applicable standards: DIN 766 and related DIN chain standards
• Material options: AISI 316 stainless steel, carbon steels (Q235, Q195), high carbon steel, manganese steel, CM490, super carbon steel
• Surface treatments: electro-galvanizing, hot-dip galvanizing, blackening, plastic spraying, dipping paint, primary color
• Packing methods: sacks, wrapped reels, plastic drums, iron drums, wooden boxes, cartons
• Chain type: welded short-link chain
• Intended uses: anchor chains, fences, barriers, anti-theft applications, general non-lifting operations
• Size range: nominal link diameters from 2 mm to 32 mm with corresponding dimensions and weights per meter (see parameters)
• Warning: not suitable for overhead lifting or overload lifting operations
