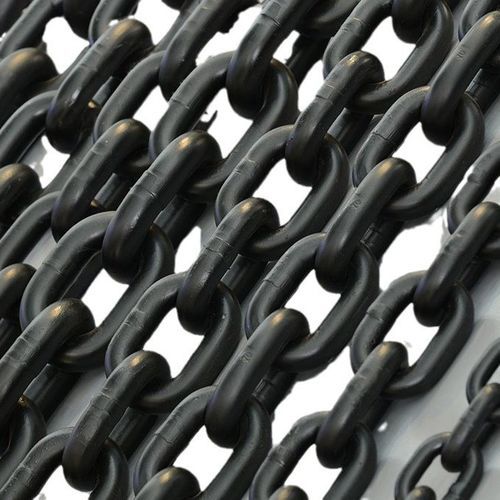

Transmission chain Manure Spreader Chain

hardened steelagricultural

Product Overview
TopOne Chain’s Manure Spreader Chain is engineered for continuous heavy‑duty agricultural operation. Designed for manure spreaders, floor conveyors, feed wagons and forage equipment, the chain is manufactured in heat‑treated steel to deliver high wear resistance, elevated tensile strength and extended service life. Available in Case Hardened (G50), DIN 32895 (G70) and high‑performance Grade 80 (G80).

Materials and Grades
Heat‑treated steel construction. Available grades: G50 (Case Hardened), G70 (DIN 32895), G80 (TopOne Chain high‑performance). Multiple diameters and custom lengths available to match machine requirements.

Applications

• Manure spreaders
• Agricultural floor conveyors (spreader aprons)
• Feed wagons
• Forage harvesters
• General farm material handling

Chain Performance Specifications by Grade
Ø(dn) | Case Hardened (G50) WLL (t) | DIN 32895 (G70) MTF (t) | TopOne Chain (G80) BLL (t)
8.0 | 1.28 | 3.19 | 5.10
9.0 | 1.63 | 4.06 | 6.50
9.5 | 1.81 | 4.53 | 7.25
10.0 | 2.00 | 5.00 | 8.00
11.0 | 2.44 | 6.09 | 9.75
12.0 | 2.89 | 7.22 | 11.55
13.0 | 3.39 | 8.47 | 13.55
14.0 | 3.96 | 9.91 | 15.85
16.0 | 5.13 | 12.81 | 20.50
Note: WLL = Working Load Limit; MTF = Minimum Test Force; BLL = Breaking Load Limit.

Standards and Available Dimensions
DIN Standard | Grade | Ø(dn) (mm) | Dimension (mm)
Special | 80 | 8.0 | 8 x 22.8
766 | 80 | 8.0 | 8 x 24
32895 | 80 | 8.0 | 8 x 31
766 | 80 | 9.0 | 9 x 27
32895 | 80 | 9.0 | 9 x 31
Special | 80 | 9.5 | 9.5 x 26.2
Special | 80 | 9.5 | 9.5 x 27
Special | 80 | 10.0 | 10.0 x 26.5
766 | 80 | 10.0 | 10 x 28
32895 | 80 | 10.0 | 10 x 31
32895 | 80 | 10.0 | 10 x 35
Special | 80 | 10.0 | 10 x 38
766 | 80 | 11.0 | 11 x 31
32895 | 80 | 11.0 | 11 x 35

Additional Information

• Connecting solutions: variety of connecting links; custom dimensions on request.
• Drive systems: compatible drive wheels for manure spreaders available.
• MOQ: 500 Meters
• Packaging: steel drum or wooden box

Technical specifications

• Brand: TopOne Chain
• Commercial name: Manure Spreader Chain
• Material: Heat‑treated steel (high wear resistance and tensile strength)
• Available grades: G50 (Case Hardened), G70 (DIN 32895), G80 (TopOne Chain)
• Performance examples by diameter: Ø 8.0 mm — G50 WLL 1.28 t; G70 MTF 3.19 t; G80 BLL 5.10 t
• Performance examples by diameter: Ø 9.0 mm — G50 WLL 1.63 t; G70 MTF 4.06 t; G80 BLL 6.50 t
• Performance examples by diameter: Ø 9.5 mm — G50 WLL 1.81 t; G70 MTF 4.53 t; G80 BLL 7.25 t
• Performance examples by diameter: Ø 10.0 mm — G50 WLL 2.00 t; G70 MTF 5.00 t; G80 BLL 8.00 t
• Performance examples by diameter: Ø 11.0 mm — G50 WLL 2.44 t; G70 MTF 6.09 t; G80 BLL 9.75 t
• Performance examples by diameter: Ø 12.0 mm — G50 WLL 2.89 t; G70 MTF 7.22 t; G80 BLL 11.55 t
• Performance examples by diameter: Ø 13.0 mm — G50 WLL 3.39 t; G70 MTF 8.47 t; G80 BLL 13.55 t
• Performance examples by diameter: Ø 14.0 mm — G50 WLL 3.96 t; G70 MTF 9.91 t; G80 BLL 15.85 t
• Performance examples by diameter: Ø 16.0 mm — G50 WLL 5.13 t; G70 MTF 12.81 t; G80 BLL 20.50 t
• Standards & dimensions examples: Special 8 x 22.8; 766 8 x 24; 32895 8 x 31; 766 9 x 27; 32895 9 x 31; Special 9.5 x 26.2; Special 9.5 x 27; Special 10.0 x 26.5; 766 10 x 28; 32895 10 x 31; 32895 10 x 35; Special 10 x 38; 766 11 x 31; 32895 11 x 35
