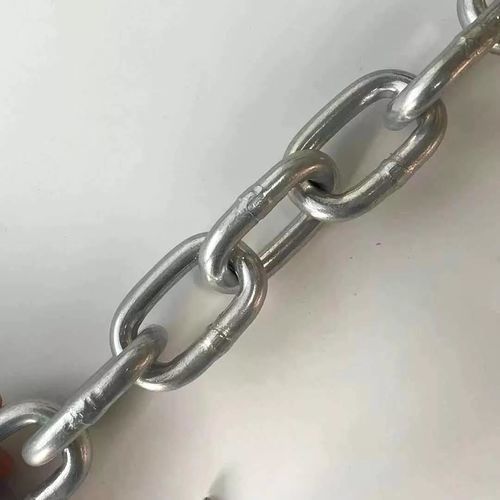

Demarcation chain

anchorsteelcarbon steel

Overview
DIN 764 chain (German Standard Medium Link Chain) is the accepted standard for measuring chain link dimensions. Chain size refers to the diameter of the link material. Available in AISI316 stainless steel, high carbon steel, manganese steel, CM490, Q235, Q195 and super carbon steel. Typical applications: anchor chains, fences, barriers, anti-theft safety and general non-lifting operations. Do not use for overhead lifting.

Introduction

• Material: carbon steel Q235 & Q195, high carbon steel, manganese steel, CM490, super carbon steel.
• Surface treatment: primary color, electro-galvanizing, hot-dip galvanizing, blackening, plastic spraying, dipping paint, etc.
• Packing: sacks, wrapping wheels, plastic drums, iron drums, wooden boxes, cartons, etc.
• Welded chain construction.
• Not for overload or overhead lifting.

Parameter
SIZE (mm) | INSIDE LENGTH (mm) | INSIDE WIDTH (mm) | OUTSIDE WIDTH (mm) | LENGTH PER 11 LINKS (mm) | WEIGHT PER 100M (kg) | BREAKING LOAD (kN) | TEST LOAD (kg)
4 | 16 | 5 | 14 | 176 | 31.3 | 7 | 400
5 | 18 | 7 | 18.2 | 198 | 51.4 | 11.8 | 680
6 | 21 | 8 | 21.5 | 231 | 74 | 16.5 | 850
8 | 28 | 11 | 29 | 308 | 131.5 | 32 | 1680
10 | 35 | 14 | 36 | 385 | 200 | 50 | 2630
13 | 45 | 18 | 47 | 495 | 350 | 80 | 4200
16 | 56 | 22 | 58 | 616 | 520 | 125 | 6700
18 | 63 | 24 | 65 | 693 | 650 | 160 | 8400
20 | 70 | 27 | 72 | 770 | 820 | 200 | 10000
23 | 80 | 31 | 83 | 880 | 1100 | 250 | 13000
26 | 91 | 35 | 94 | 1001 | 1400 | 320 | 16000

Standards
DIN chain (German standard chain) includes: DIN 766 chain (short link chain), DIN 764 chain (medium link chain), DIN 763 chain (long link chain), DIN 5685 chain, DIN 22252 chain.

Technical specifications

• Model: Din 764 Chain
• Brand: TOPONE Chain
• Materials available: AISI316 stainless steel, high carbon steel, manganese steel, CM490, Q235, Q195, super carbon steel
• Chain type: Welded medium link chain
• Surface: primary color / electro-galvanized / hot-dip galvanized / blackening / plastic spraying / dipping paint
• Packing: sacks, wrapping wheels, plastic drums, iron drums, wooden boxes, cartons
• Recommended uses: anchor chains, fences, barriers, anti-theft, general non-lifting operations
• Do not use for overhead lifting
• Available sizes (mm): 4, 5, 6, 8, 10, 13, 16, 18, 20, 23, 26 (see parameter table for dimensions and performance)
