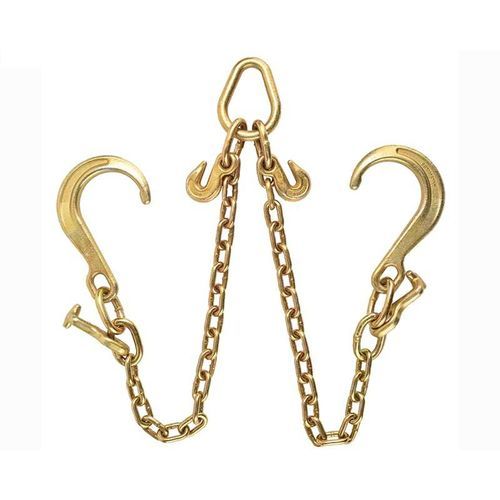

Transmission chain G70 Tow

towingcarbon steelgalvanized

Product Overview
G70 Tow Chain is a NACM/ASTM Grade 70 transport and towing chain designed for truck load binding and towing applications. Manufactured from premium heat-treated carbon steel with improved hardenability and wear resistance. US type, yellow plated option available, supplied with clevis slip hook for truck use. Meets DOT requirements for towing.

Introduction

• Size range: 1/4" ~ 3/4" (approx. Dia. 7 mm ~ 20 mm)
• Working Load Limit (WLL): 3,150 lbs ~ 24,700 lbs (approx. 1,430 kg ~ 11,200 kg)
• Surface finishes: Self colored; Galvanized; Hot Dip Galvanized
• Material: Premium heat-treated carbon steel
• Safety factor: 4 × WLL

Parameter (Definitions)

• Grade of Chain: NACM/ASTM classification; higher grade indicates higher working load limit for a given size.
• Working Load Limit (WLL): Rated operational capacity — maximum recommended load in direct tension on an undamaged straight chain.
• Proof Test: Minimum tensile force applied during manufacturing as an integrity check; not a design criterion.
• Minimum Breaking Force: Lowest force recorded during manufacturing break tests; used for acceptance, not service design.
• Overhead Lifting: Lifting a suspended load where a drop could cause injury or damage — G70 tow chain is intended for transport/towing, not for standard overhead lifting unless specifically certified.

Size / Performance Table (rows show raw table values as published; columns order follows the original table cell sequence)
Columns order (as in the source table): Size | D (where shown) | Inside Length A | A +/- | Outside Width B | B +/- | Working Load (KG) | Test Load (N) | Breaking Load (N) | Weight Per M (KG)
Row: 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15
Row: 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27
Row: 5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43
Row: 6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63
Row: 7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86
Row: 8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1
Row: 9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41
Row: 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75
Row: 11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11
Row: 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55
Row: 13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95
Row: 16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45
Row: 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65
Row: 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25
Row: 20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7
Row: 22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55
Row: 25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9
Row: 28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9
Row: 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2

Standards & Packing

• Standard: G70 Tow Chain (NACM/ASTM Grade 70)
• MOQ: 100 meters
• Package: Carton + Steel Pallet

Technical specifications

• Product name: G70 Tow Chain
• Model / grade: Grade 70 (NACM / ASTM)
• Size range: 1/4" ~ 3/4" (Dia. 7 mm ~ 20 mm)
• Working Load Limit (WLL) range: ~1,430 kg ~ 11,200 kg (3,150 lbs ~ 24,700 lbs)
• Material: Premium heat-treated carbon steel
• Surface finishes: Self colored, Galvanized, Hot Dip Galvanized
• Safety factor: 4 × WLL
• Applications: Truck load binding, towing, construction, logging, farming
• Compliance: Meets DOT requirements for towing applications
• MOQ & Packaging: 100 meters; Carton + steel pallet
