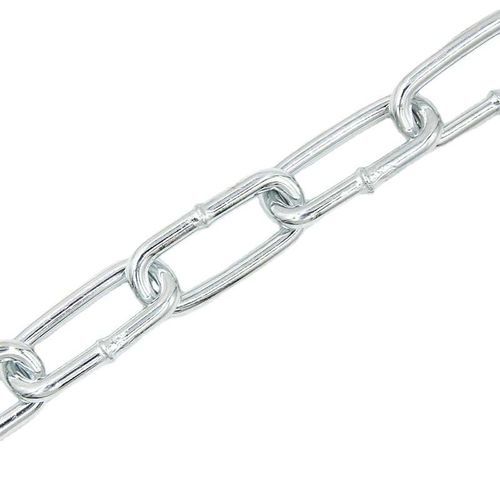

Towing chain Grade 30

steelzinc-platedcorrosion-resistant

Overview
Grade 30 proof coil chain, electronically welded and electro-galvanized for corrosion resistance. Designed as a general-purpose utility chain for non-overhead-lifting applications where a reliable working load limit and dimensional consistency are required.

Introduction
Manufactured from low carbon steel, this Grade 30 proof coil chain is suitable for agricultural, towing, logging and switch-chain uses. It provides consistent strength characteristics in accordance with NACM/ASTM classifications. Not intended for overhead lifting.

Caution

• Do NOT use for overhead lifting.
• DO NOT EXCEED the published Working Load Limit (WLL).

Parameters

• Grade of Chain: Classified per NACM and ASTM; Grade 30 indicates the chain's manufacturing and strength category.
• Working Load Limit (WLL): Maximum recommended working load in direct tension for an undamaged straight length of chain.
• Proof Test: Manufacturing test force applied in direct tension to verify integrity; not a service or design criterion.
• Minimum Breaking Force: Measured breaking load during manufacture; this is a manufacturer acceptance test and not a guarantee for service conditions.
• Overhead Lifting: Any operation that could raise a suspended load to a position where a dropped load may cause injury or damage — this chain is NOT rated for such use.

Table - Chain Sizes
Chain Size Inch | Chain Size MM | Working Load Limit (lbs) | Weight Per Foot (lbs) | Material Diameter (in) | Inside Length Inch | Inside Width (in)
1/4" | 7 | 1,300 | 0.55 | 0.275" | 1.24" | 0.46"
5/16" | 8 | 1,900 | 0.79 | 0.308" | 1.30" | 0.49"
3/8" | 10 | 2,650 | 1.15 | 0.367" | 1.45" | 0.60"

Standards

• Standard: Grade 30 Proof Coil Chain Electro Galvanized (Long Link)
• MOQ: 100 Meters
• Package: Carton + Steel Pallet

Technical specifications

• Model: Grade 30 Proof Coil Chain
• Finish: Electro-galvanized
• Material: Low carbon steel
• Construction: Electronically welded proof coil chain
• Primary uses: farm, log chain, tow chain, switch chain
• Not for overhead lifting
• MOQ: 100 Meters
• Package: Carton + Steel Pallet
• Applicable standards: NACM, ASTM
• Available chain sizes and WLL: see table above
